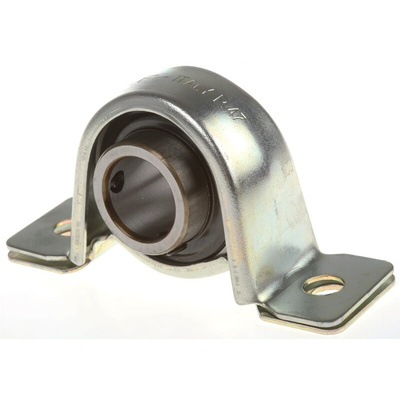

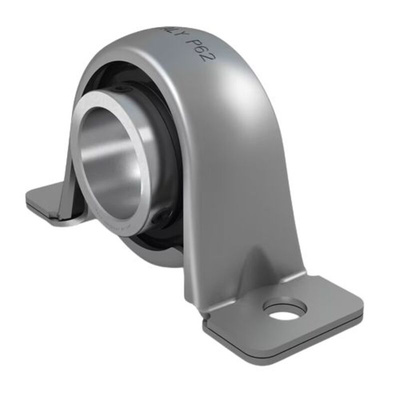

SKF P 20 TF Plummer Block House -, 20mm ID

SKF Plummer Block House, 20mm ID, 32mm Overall Width, 8500r/min Limiting Speed - P 20 TF

To reliably support couplings and shafts, turn to this plummer block house from SKF. It consists of a rotating inner ring supported by a solid outer ring and base. Installation only calls for two M6x0.75 bolts that slot tidily into pre-made fixing holes. The width between the holes is just 76mm, so the unit lends itself to mounting in rows on machinery. Its light 240g weight means that strain on your infrastructure is minimal, even when used as a set. This device is a handy option for jobs that involve industrial chemicals and contaminants, thanks to its zinc-coated housing that keeps corrosion at bay.

Features & Benefits

• Pressed steel construction holds firm against abrasion and mechanical stress
• Fast limiting speed of 8500r/min suits heavy-duty rotational tasks
• 12.7kN dynamic load and 6.55kN static load ratings to take the strain in challenging operations

Applications

• Power transmission systems
• Aggregate production
• Sawmills and forestry

Why does this plummer block house need lubrication?

Adding lubrication, such as grease, lowers friction levels to ensure smooth motion between the moving parts in this assembly. This helps to prolong the service life of the unit.

Dimension drawing data sheet

Datasheet - P 20 TF
