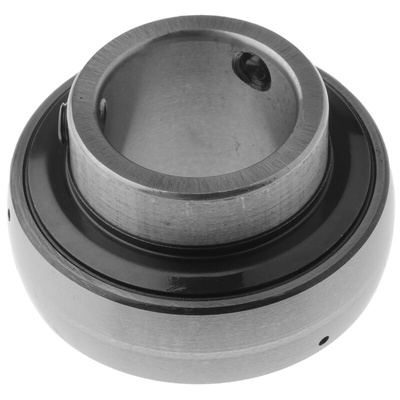

SKF YAR 205-100-2F Ball Bearing Insert -, 25.4mm ID

SKF Ball Bearing Insert, 25.4mm ID, 52mm OD - YAR 205-100-2F

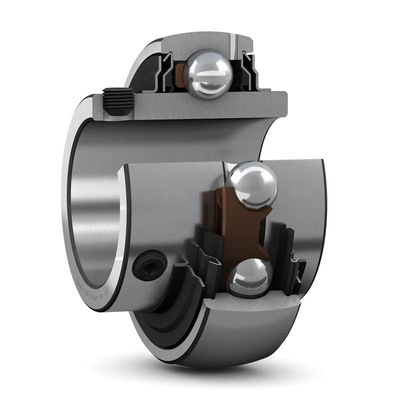

Use this ball bearing insert from SKF to balance your rotating machine parts. It features an inner ring to extend on both sides of a shaft and give it extra support. You can mount it by using set screws to lock the inner ring to the shaft. This keeps it steady, quiet and able to tolerate heavy vibrations. It's a suitable option for applications where there are constant changes in the direction of rotation. The outer ring has a spherical shape designed to tilt when you set it in a housing, so it can accommodate initial misalignment.

Features & Benefits

• Comes pre-lubricated for smooth rotation
• Limiting speed of 7000rpm for use with high-speed equipment
• Durable steel housing is resistant to impacts and corrosion
• Integrated relubrication features for hassle-free maintenance
• Seal and flinger on both sides help keep dirt particles out

Applications

• Energy industry
• Conveyor systems
• Construction equipment
• Food and beverage production

What's the load capacity of this ball bearing insert?

Thanks to a basic dynamic load rating of 14kN and a static load rating of 7.8kN, you can rest assured that this bearing insert can handle heavy mechanical loads.

Datasheet

Catalogue - Rolling Bearings

Datasheet - YAR 205-100-2F
