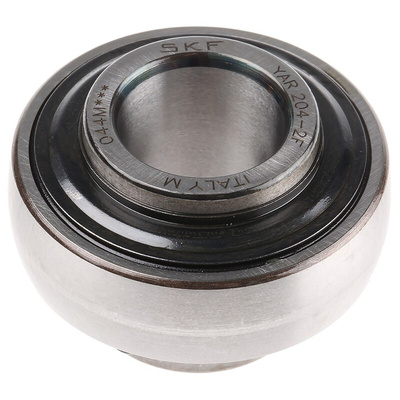

SKF Bearing Inserts 20mm ID 47mm OD YAR 204-2F

SKF Set-Screw Lock Bearing Insert, 20mm ID, 47mm OD - YAR 204-2F

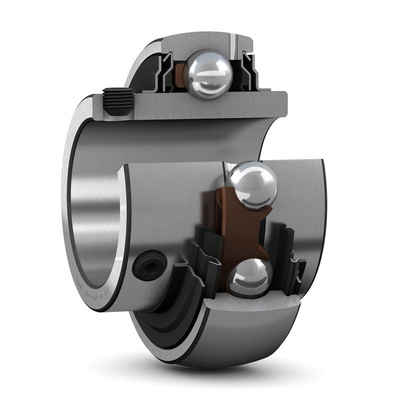

Ensure smooth operation of your machine shafts by installing this insert bearing from SKF. It's efficient when used in chain systems operating with a high radial load as it helps reduce friction. The wide 31mm inner ring protrudes on one side to balance the ball movement and provide additional shaft support. You can make use of this bearing in heavy industrial settings as it can withstand a dynamic load rating of 12,700N in moving machinery. Insert this bearing in commercial production equipment for reliable operation in the manufacturing process.

• Static load rating of 6550N keeps shaft grounded in stationary or low-speed equipment
• Easy to insert and secure via simple set-screw lock mechanism
• Lengthy 8500r/min (rotations per minute) limiting speed for relaible operation in fast-moving machines
• Extended inner ring for time-saving mounting on a shaft

Applications

• Food production
• Printing press
• Construction industry
• Material handling
• Motor engines

How do I lubricate this SKF insert bearing?

This bearing has no lubrication hole as it's encased in a self-lubricating seal that doesn't need any additional lubrication. This keeps the bearing suitably greased, even when it's rotating at increased speeds.
