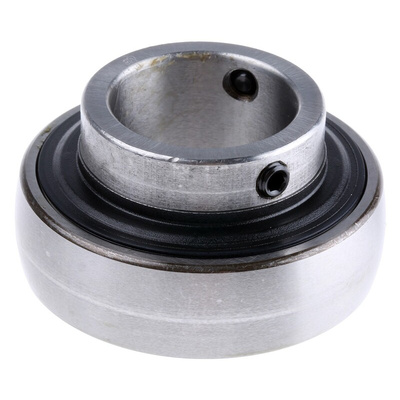

SKF Bearing Inserts 30mm ID 62mm OD YAR 206-2RF

SKF Bearing Inserts, 30mm ID, 62mm OD - YAR 206-2RF

Use this bearing insert from SKF to accommodate a constantly rotating shaft in your equipment. It features an inner ring that extends from the outer ring for easy mounting on a shaft. This design helps ensure a stable connection, allows the unit to withstand vibrations and results in reduced noise levels. The spherical outer ring is designed to tilt when set in a housing, enabling it to accommodate misalignment. A dynamic load rating of 19500N and static load rating of 11200N make this a suitable choice for use with heavy-duty machinery.

• Built-in lubrication holes for hassle-free maintenance
• Limiting speed of 3800r/min to withstand high-speed applications
• Steel body offers resistance to impact and corrosion for an extended service life
• Seal and flinger on both sides help prevent dirt and moisture contamination

Applications

• Material handing
• Agricultural equipment
• Conveyor belts

How do I fasten this insert bearing to a shaft?

To mount this insert bearing on a shaft, simply lock the inner ring to the shaft using two M6 x 0.75 set screws and tighten it with a 3mm hexagonal key to achieve a secure hold.
