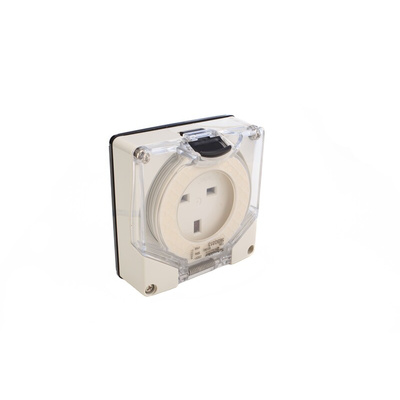

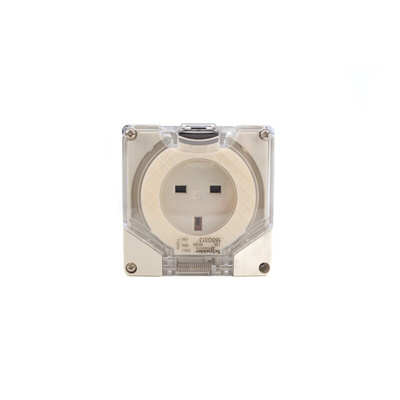

56SO313LEGY, Schneider Electric IP66 Grey Surface Mount 3P Industrial Power Socket, Rated At 13A, 250 V, Розетка

Schneider Electric | 56 Series | Industrial Socket Modules

A modular range able to incorporate a variety of sockets and switches into one back box makes the 56 series easy to install and highly flexible. Featuring industrial and commercial wiring accessories, the 56 series is available in pre-built or modular component form.
With an IP66 level of protection these sockets are weatherproof, dust-proof and watertight. Manufactured from polycarbonate they also offer maximum impact resistance making them heavy duty and reliable in harsh environments. Each socket in this range features a clear or transparent hose-proof flap and a snap catch latch, this allows the voltage rating to be indicated and makes visual inspection simple. Both plain and screw ring plugs are accommodated by the sockets which allows for the number of variations required. Schneider Electrics 56 series also offers mounting enclosures allowing more than one socket to be connected with plenty of room for easy wiring and installation.

Features and Benefits:

• Option to combine sockets with RCD or MCB protection
• Aqualseal for quality and safety
• Spring loaded transparent flap
• Snap catch latches
• Chemical resistance

Protection ratings & Safety features:

• Lloyds approval
• IP66 protection
• BS4343/BSEN 60309 types are derated to IP44 when plug is inserted and must be mounted on deep boxes
• IEC529; BS5490; CEE17; EN60309

Applications - Industrial and commercial where protection against jets of water and durability is needed, other applications include:
• Marine (ideal for preventing cable tugging when equipment in use)
• Pharmaceutical
• Food processing

Approvals

ENV1; ENV2; ENV5

Standards

BS1363; IEC529; BS5490; CEE17; EN60309 (Will Supercede BS4343)

Supplied with
type":"Supplied with",

M20; M25; M32; M40

IP66 Watertight

Wiring accessories available in pre-built or modular component form for maximum flexibility. Ideally suited for domestic, commercial or industrial applications.

Synthetic gaskets provide IP66 protection
Manufactured from polycarbonate for maximum impact resistance

56 Series Industrial Switch Gear Product Data Sheet
