Southco Hexagon Recess Head Compression Latch

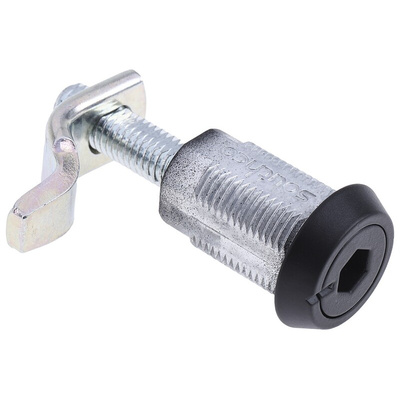

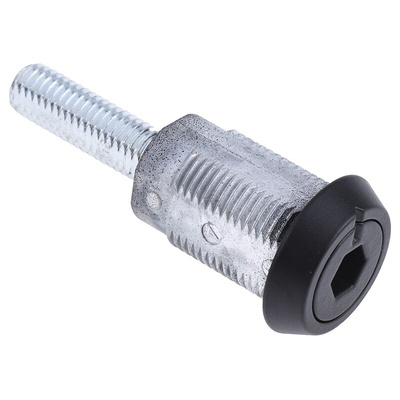

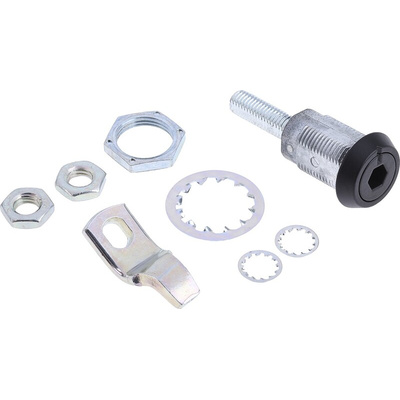

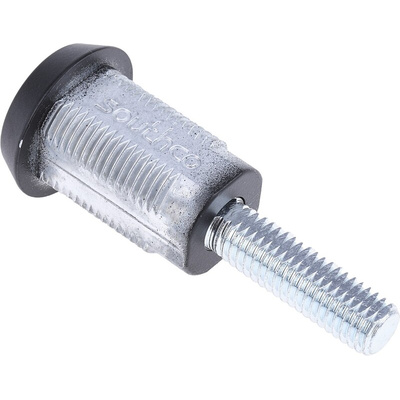

The Southco Vice action series hexagon recess head compression latch is cylindrical in shape. The latch has a raised trigger and a push to close mechanism. It applies consistent pressure to gasketing with one-half turn is all that is required to latch the door and pull it uptight. It has a height of 47.5mm, a width of 29mm and depth of 64mm body.
Features and Benefits
Head style is 8 (.32) Hex recess
Grip range is 25.4mm to 14.1mm deep offset cam, forward and 52.6mm to 68.3mm deep offset cam, forward
450N static load capacity
Consistent pre-set compression
Easy grip adjustment
Tool operated for security
Housing material is steel with black powder coated
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP65 rating
NEMA 4
