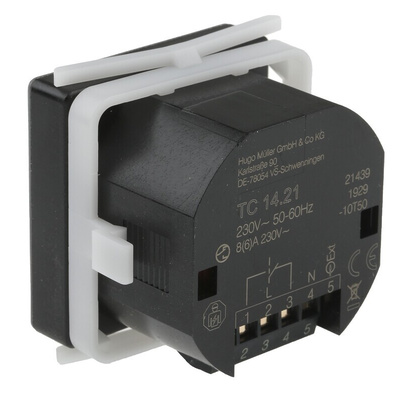

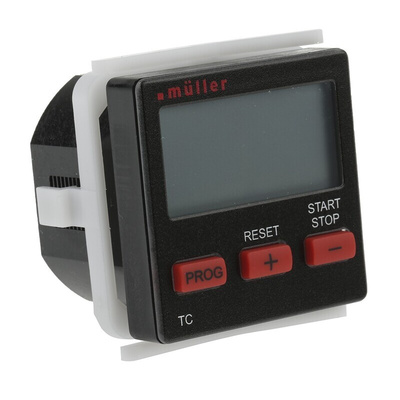

TC 14.21, Muller Black Digital Desktop Timer 9 h 59 min 59.99 s, Таймер

Muller Digital Timer For Panel Mounting

The Muller panel mountable digital timer is a compact yet reliable timer perfect for applications that require a precise time count down. The Muller digital timer features a user-friendly interface that is easy to use, with start/stop, reset and program buttons coupled with an LCD display with 15 mm high numerals. Upon completion of time, a visual signal notifies you along with an audible alarm enhancing the notification. The Muller digital timer has a max time range of up to 9h 59m 59s, providing a timer that can be used for a wide range of applications. This compact timer offers a 230 Vac supply voltage, with a power backup feature ensuring a reliable timer.

Features and benefits

• Ideal for panel mounting
• User friendly interface with start, stop, reset and program buttons
• Clear and precise LCD display providing clear visualisation of elapsed time
• Self-extinguishing thermoplastic enclosure with IP20 rating providing protection from objects over 12 mm
• Easy to program and operate
• Max. time 9h 59m 59s
• 1 change-over relay
• Repeatability accuracy 100%
• Time set accuracy 1 sec.
• Output rating 8 A / 230Vac
• Inputs for start and stop (230Vac)
• Optical and audible notification of time completion

Applications

This compact timer can be used in a variety of applications that require elapsed time to be measured such as:

• Sporting events
• Competitions
• Cooking
• Meetings
• Lectures

How is this timer operated?

This timer from Muller is operated via mains, with a supply voltage of 230 Vac.

Is there an audible alarm?

This timer features an audible and visual alarm upon completion of time.

What is the max time achievable?

The max time achievable with the Muller panel mountable timer is 9h 59m 59s.

Datasheet
