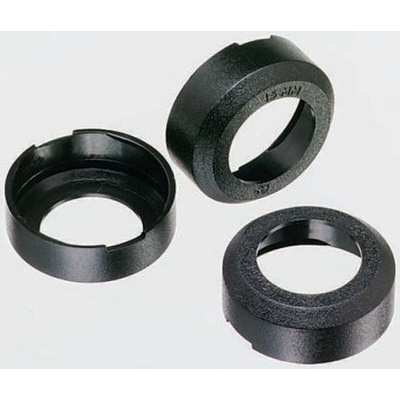

PM1915E, JG Speedfit Push Fit Fitting Collet Cover, 15mm od

3406849
Номер производителя: PM1915EПроизводитель: JG Speedfit
Цена за шт. (норма упаковки 20 шт)
60.45 руб. (С НДС) *
Количество 20+ 100+ 200+ 500+
Цена 60.45 руб. 58.50 руб. 56.55 руб. 54.60 руб.

Срок поставки: 4-6 недель

+

* Цена справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Collet Covers

Prevent accidental removal or tampering with piping
Pipe can be inserted with the collet cover already attached to the fitting or the cover can slide into position afterwards

Air Ring Main System

The John Guest system of push-in fittings and pipe, designed for use with air, provide the ideal connection from compressor receiver to air line service components through to complete ring main and take off points.

No need to prepare threaded pipe or apply solvent
Easy and quick to install, simple push-in connections
Safe, secure and leak-proof, ready for immediate use
Unique collet locking system holds tube firmly without deformation or flow restriction
Easy to disconnect and reconfigure the system
Instruction leaflet included

Temperature Range 0 to + 70°C
Working Pressure @ +23°C = 10 bar (145 psi)
Working pressure @ +70°C = 7 bar (101 psi)
Pipe tolerances: +0.05 to -0.10mm OD
Material, pipe: rigid (unplasticised) Nylon 12
Material, fittings: bodies engineering plastic (black acetal copolymer) or brass
'O' Rings: Nitrile rubber
Collets: acetal polymer with stainless steel teeth

Техническая спецификация
pdfV10855 Air Ring Main system
pdfP Range Collet Covers Slotted Data Sheet
pdfWRAS 0202102
Совместимый размер трубы 1:
15мм
Тип фитинга:
Collet Cover
