A161, Omron Contact Block for Use with Push Button Switch, 1CO, Контактный блок

Contact and Indicator Blocks - A16 Range

Contact and Indicator Blocks with solder terminals

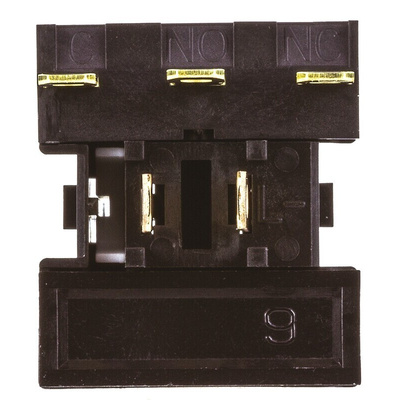

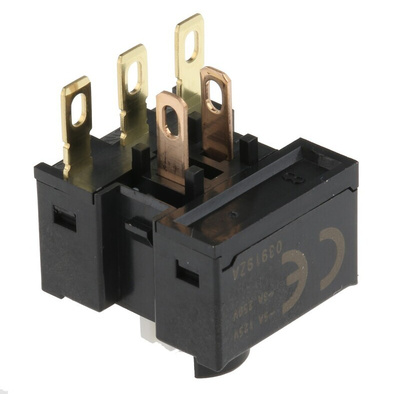

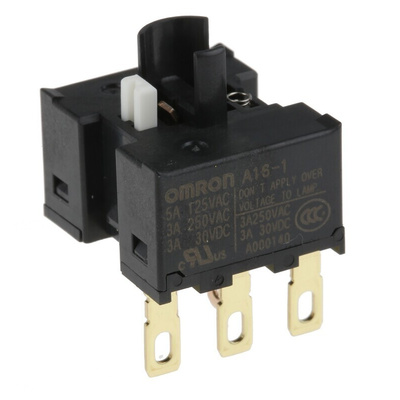

OMRON Push Button Contact Block, 230V AC Voltage Rating, 16mm Cut-Out Diameter - A16 Series - A161

Choose this push button contact block from OMRON to get control of industrial tasks at your fingertips. It pairs with a button head from the A16 series to let you make or break a circuit with one press. A single pole double throw configuration makes it ideal for switching between two states. This device is made of robust resin that's resistant to mechanical and thermal stress, so you get a long service life. An inbuilt lever mechanism makes it easy to install or remove the unit, while a compact cut-out diameter of just 16mm maximises space on your control panel.

Features & Benefits

• Solder termination style creates a permanent bond that's ideal for high-vibration settings
• Snaps together by hand for easy assembly
• Electrical durability of over 100,000 operations ensures it's built to stay the course
• Reliable performance in temperatures between -10°C and +55°C, so it's suitable for factory conditions

Applications

• Heavy engineering
• Industrial automation
• Electronics systems

Is this unit protected against contaminants?

Once installed, this push button contact block has an IP65 rating, which means it's completely dust-tight and resists low-pressure water jets from all directions.

Omron 16mm Diameter Cut Out - 230Vac Rated

Modular construction (case + contact or indicator block + lens + lamp)
Easy, snap-together assembly
IP65 sealed
Conforms to EN60943-5-1, IEC947-5-1

WEEE RoHS

Datasheet - A161
