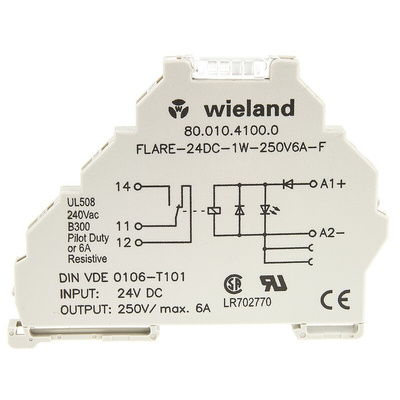

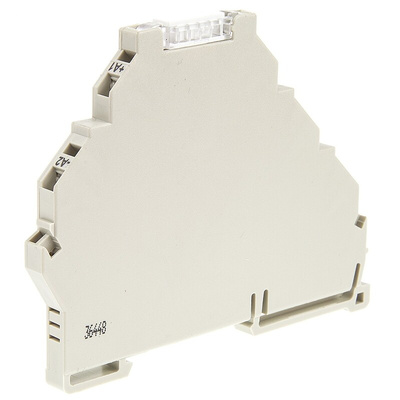

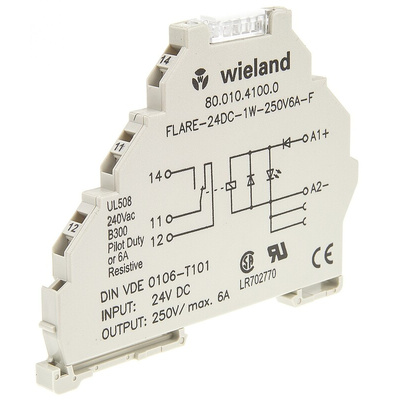

80.010.4100.0, Wieland flare Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole

Terminal Block Relay

DIN rail mounting, hermetically sealed
Plug in jumpers to link common potentials
Status LED and marking label
Integrated diodes for coil suppression and polarity protection
Contact rating 6A/250V ac
Switching voltage 250 Vac
Operating temperature range 0 to +50°C

Approvals

CSA; UL recognised

Relay Module Flare -24DC-1W-250V6A-F

From the Flare Series this compact coupling relay features a number of functions and can be mounted to any DIN rail for use in a number of industrial applications.

Features and Benefits

• Spring clamp connection
• Operating Voltage 24 V DC
• DIN rail mounting
• 1 change-over contact
• Voltage range of 19.2 to 30 V DC
• Mechanical relay has a mounting width of 6.2 mm
• Wide operating temperature of between 0 to +60 °C

Approvals

CSA

CSA LR702770
