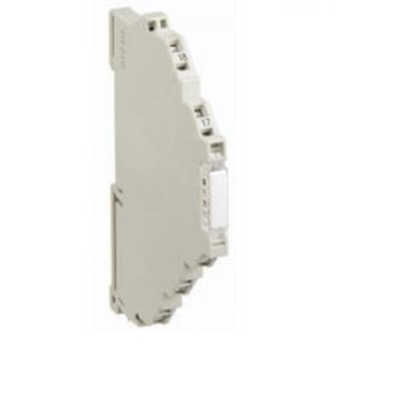

81.020.4100.0, Wieland flare Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPST, 1-Pole

Terminal Block Timer Relay

Multifunction Timer has selectable functions; On delay, Off delay, interval timer, flashing - pause start, flashing - pulse start
Basic Timers have on-delay only
DIN rail mounting - only 6.2mm width
Plug in jumpers to link common potentials
Status LED
Marking label
Simple selection of function and time range using DIP switches on the side of the housing (Stock no. 341-4840)
Simple adjustment of time delay using potentiometer located behind marking label
Contact Material AgSnO₂
Switching Voltage 250 Vac
Switch Power 1500 VA

Interface Relay Module

From the Flare Series this multifunction timer relay features a number of selectable functions and can be mounted to any DIN rail for use in a number of industrial applications.

Features and Benefits

• Multi-function timer
• Spring clamp connection
• Function flashing
• On-delay and Off-delay function
• Time range of 0.1 … 300 s
• 1 change-over contact 6 A
• Wide operating temperature of between 0 to +50 °C

Approvals

VDE
