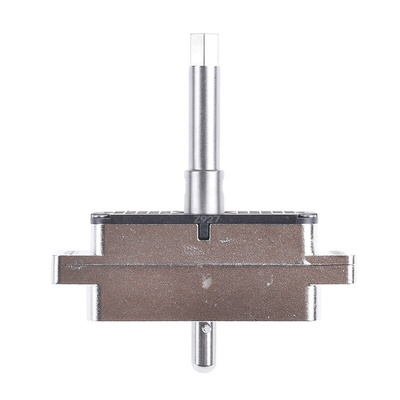

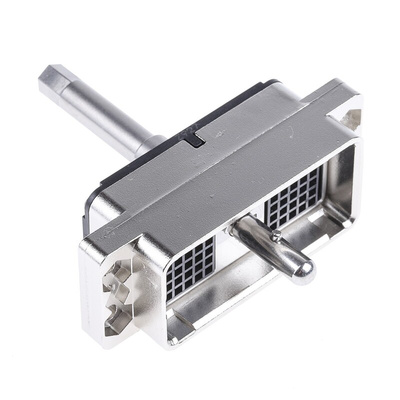

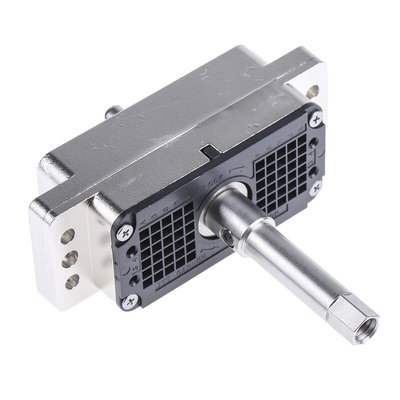

ITT Cannon Connector
The ITT Cannon DLM series metal connector shell has a shield locking mechanism feature which ensures uniform mating pressure around the perimeter of the mated connector to create an EMI/RFI shield. This male connector shell has 60 number of contacts. This contact is made of beryllium copper with gold plating. It has an electrical rating of 5A and 1.2kVAC.
Features and Benefits
It has electrical rating of 5A and 1.2kVAC.
Termination type is crimp
Operating temperature range is between -55°C and 105°C
Cam actuated zero insertion force coupling
Backshell/strain relief and polarisation options
Mounting type is panel mount
Applications
Used for instrumentation equipment in medical
Computer
Used in broadcast and avionics industries
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
