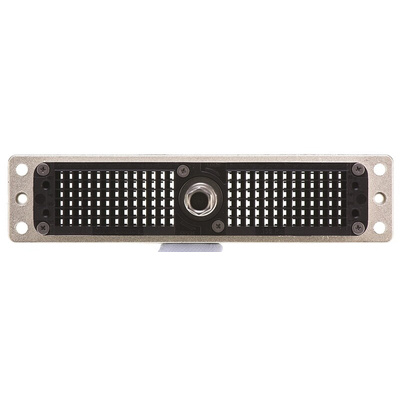

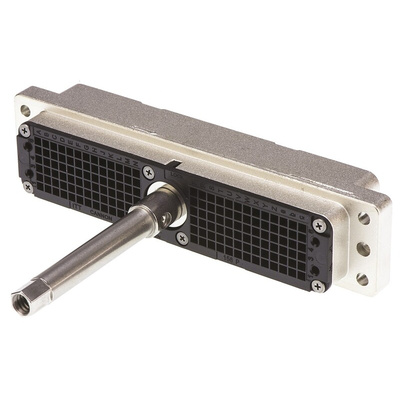

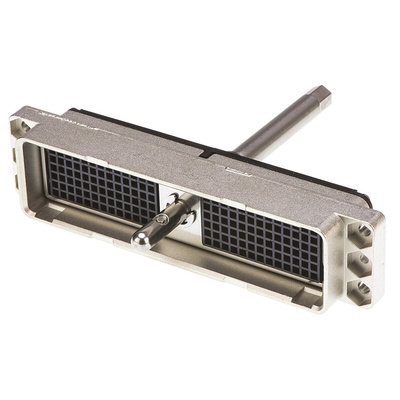

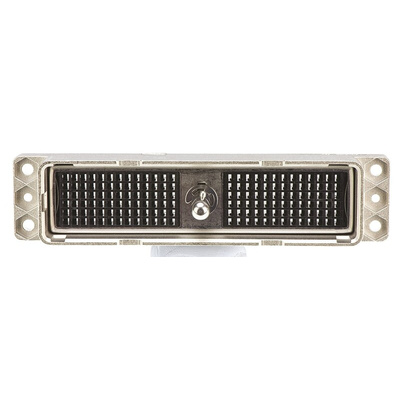

127050-0204, ITT Cannon, DLM Plug Body, Male, Straight, 156 Way, Разъем

3418965
Номер производителя: 127050-0204Производитель: ITT Cannon
Цена за шт.
62783.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

ITT Cannon ZIP Connector Plug

The ITT Cannon DLM series 156-way ZIP connector plug uses a rugged nickel-plated aluminium housing. It has 156 contacts and a shield locking mechanism feature, which ensures uniform mating pressure around the perimeter of the mated connector to create an EMI/RFI shield. This contact is made of beryllium copper with gold plating.

Features and Benefits

Back shell/strain relief and polarisation options
Current rating is 5A
Voltage rating is 1.2kVAC
Cam actuated zero insertion force coupling
Mounting type is panel mount
Operating temperature ranges between -55°C and 105°C
Termination type is crimp

Applications

Broadcast and avionics industry
Computers
Instrumentation equipment in medical field

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Техническая спецификация
pdfDLM Series ZIF Connectors
pdfCONNECTEURS METAL SERIE DLM
