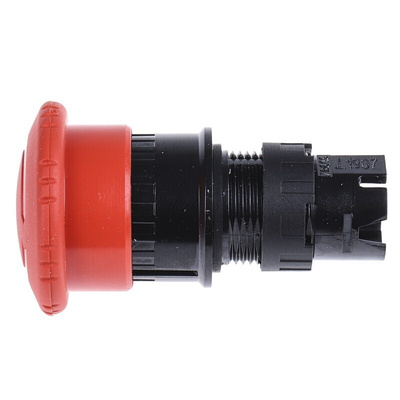

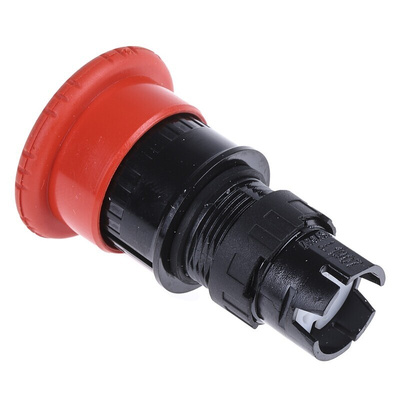

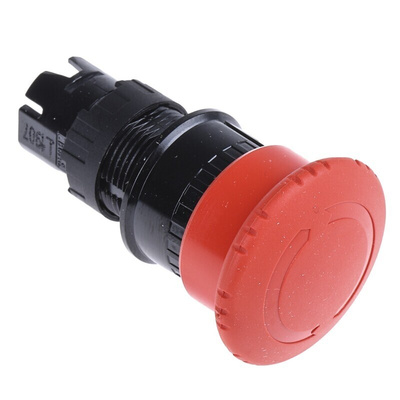

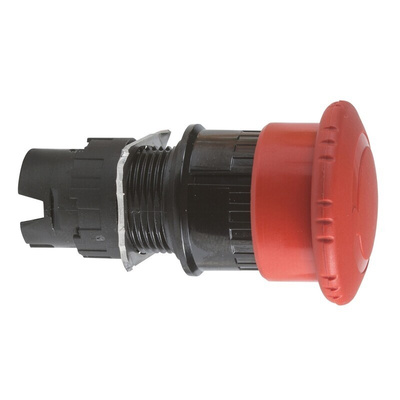

Mushroom Head Stayput Pushbutton Head, Red
Schneider Electric Push Button Head, 30mm Diameter, IP65 Rating - Harmony ZB6 Series - ZB6AS834
Looking for an effective way to start and stop your machinery? Partner your actuator with this emergency push button head from Schneider Electric and take charge of your industrial operation. Its turn-to-release mechanism ensures it stays put once pushed to prevent accidental actions that could cause damage or injury. With a mechanical lifespan of 100,00 cycles, the long-lasting component keeps up with demands in tough environments. Plus, its shock resistance assures you it can roll with the punches when the going gets tough.
Features & Benefits
• Plastic construction resists environmental damage and ensures durability
• IP65-rated unit is dust-tight and withstands low-pressure water jets
• Wide operating temperature range between -40°C and +70°C for use in challenging conditions
Applications
• Automated factory processes
• Medical imaging equipment
• Heavy machinery
• Marine applications
Why is an emergency push button head essential?
It's important to have a reliable way to immediately halt operations when something goes wrong. With an emergency push button head, you can bring things to a standstill with a single action to prevent potential accidents.
What's the cutout diameter of this push button head?
It has a 16mm cutout diameter for compatibility with standard panels.
Schneider Electric ZB6 Harmony 16mm
A range of IP65 protected components which are easily and quickly mounted in 16mm diameter holes. Each component can be ordered separately to build the required device. Also available are contact blocks with slow-break positive opening contacts with ’Faston’/solder connections. Rating Ue 250Vac, Ie 1.5A; Ue 250Vdc, Ie 0.1A, Io A Ith operating temp. -25 to +70°C.
Техническая спецификация
Harmony Style 16 Range - CharacteristicsHarmony Style 16 Range - DimensionsHarmony Style 16 Range - GeneralHarmony Style 16 Range - Sub-assemblies & HeadsProduct Environmental ProfileCatalogue - Control & Signaling Units 16 PlasticDatasheet - ZB6AS834Instruction Sheet - ZB6AS834| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
