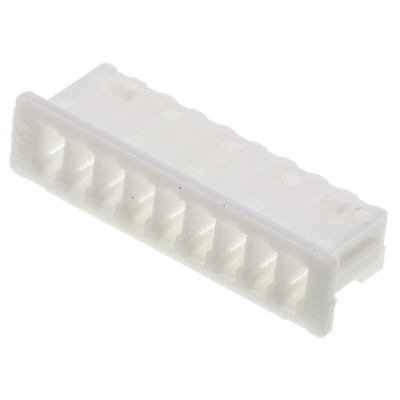

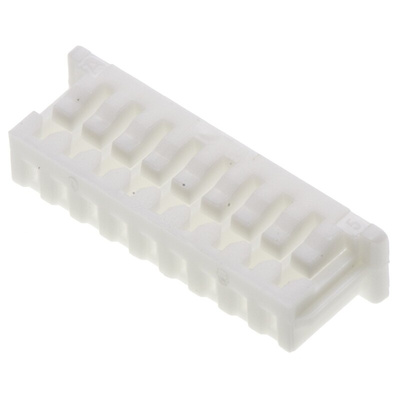

51021-0900, Molex, PicoBlade Female Connector Housing, 1.25mm Pitch, 9 Way, 1 Row, Корпус разъема

Molex Connector Housing, Straight Orientation, 13mm Length - PicoBlade Series - 51021-0900

Save space on your PCB by using this connector housing from Molex to make your wire-to-board connections. The 9-way housing has a pitch of 1.25mm and a length of 13mm, which makes it a compact solution for making multiple connections. It's made from PBT thermoplastic to ensure it's strong and resistant to wear. There's a recess inside to secure the locking tangs of your crimp terminals and maintain a firm hold.

Features & Benefits

• Clips into PicoBlade through-hole headers for the quick assembly of your electronics
• Compatible with wire-to-wire connectors for flexibility
• Flame-resistant housing to help keep electricals fire-safe
• Wide operating temperature range between -40°C and +85°C for use in demanding environments

Applications

• Electrical test equipment
• Computer peripherals
• Portable machines
• In-car systems
• Data centres

Which crimp terminals fit in this connector housing?

The PicoBlade 50058 and 50079 series of female crimp terminals work with this connector housing.

Approvals

UL (E29179); CSA (LR19980)

1.25mm Wire to Board - Molex PicoBlade™

Datasheet

Datasheet

Line Drawing

Application Sheet - Picoblade 1.25 Dip Type & Smt Type

Product Specification Sheet - Picoblade 1.25
