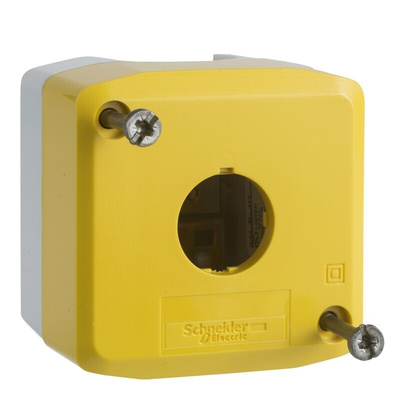

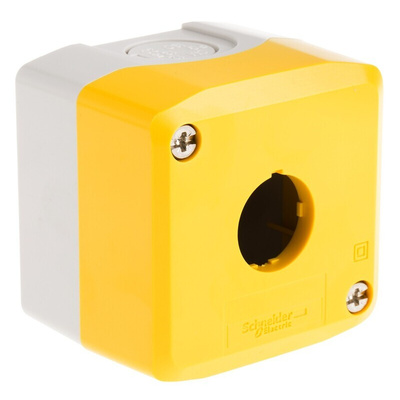

XALK01, Schneider Electric Yellow Plastic Harmony XALK Control Station Enclosure - 1 Hole 22mm Diameter, Корпус

Schneider Electric | Harmony XALK and XALD Series | Push Button Enclosures

Harmony is a machine and panel solution series from Schneider Electric, the series includes push buttons, pilot lights, switches and other panel solutions offering high-performance without compromise. Offering modern and stylish design, efficiency, robustness in harsh environments, the Harmony series is one of the most comprehensive ranges available.

The Harmony XALK and XALD series is a variety of push button enclosures or control stations, which are compatible with other items in the Harmony range such as push buttons, mushroom head operators, legend plates and LEDs. Perfectly suited for many typical functions such as start, stop, start-stop and emergency stop, they have been specifically designed for simple installation whilst having a robust construction. Stations are complete and ready for assembly in order to meet your requirements, available are 1, 2, 3, 4 or 5 cut outs which are compatible with the Harmony XB5 units and push buttons. Protected to IP65 and NEMA 4 these enclosures are dusts and damp proof, whilst also conforming to IEC, UL and CSA standards.

XALD complete control stations are fitted with 1, 2 or 3 Ø 22 mm control and signalling units from the Harmony XB5 range

XALK complete control stations for emergency stop function (mushroom head push buttons)

Features and Benefits:

• Flush mounting
• Dust and damp proof
• Lightweight
• XALD for Ø 22 mm control and signalling units

Protection ratings & Safety features:

• Overvoltage rating Class II conforming to IEC 60536
• IP69, IP67, IP66 conforming to IEC 60529, IP69K and IK03 conforming to EN 50102
• NEMA 13 and NEMA 4X
• EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C 4520, UL 508 and CSA C22.2 No 14

Applications - Industry, service sector and infrastructure such as:
• Chemical industry
• Marine
• Energy distribution
• Panel builders
• Car washes
• Food and Beverage

Standards

CE Marked, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520.

Approvals

UL, CSA.

Schneider Electric Control Station Enclosure, 68mm Width, 53mm Height - Harmony XALK Series - XALK01

Want to keep your push buttons safe from the elements? Shield essential panel components with this control station enclosure from Schneider Electric. It seals out water, grease and dirt to maintain the signal integrity between your actuator and downstream equipment. TH protective treatment helps the casing shrug off corroding substances, giving you long-lasting operation. This component is fully compatible with the entire Harmony XB5 range, so you can install it to guard switches (815-1838), emergency stops (426-2808) and beacons (167-9013).

Features & Benefits

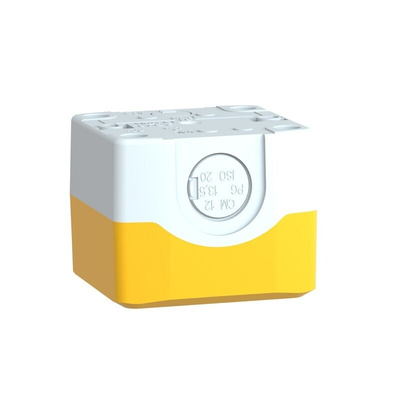

• Two knock-out slots hold 12mm and 14mm diameter cables without gaps to keep contamination out
• Light 0.136kg weight won't put unnecessary strain on cable connections or your panel
• Performs in demanding applications thanks to its wide -40°C to +70°C operating temperature range
• Bright yellow colour for immediate identification in a busy setup

Applications

• Food and drink production
• Chemical engineering
• Retail warehouses

What IP rating does this enclosure come with?

This product has IP67, IP66, and IP69K ratings. These indicate that the unit is fully protected against dust, submersion and water jets coming from all directions.
