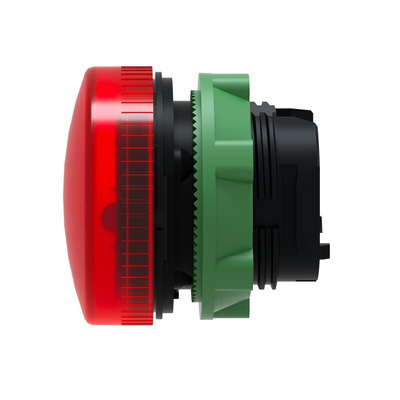

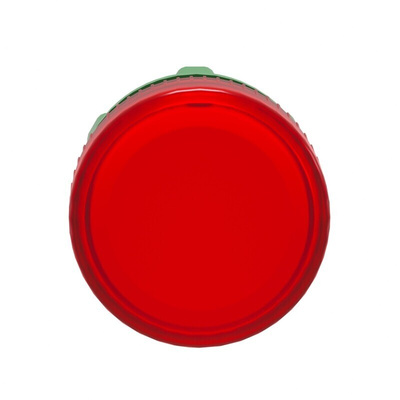

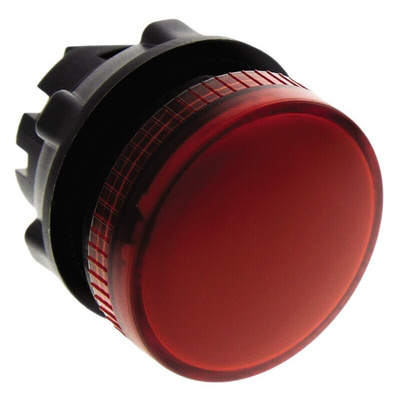

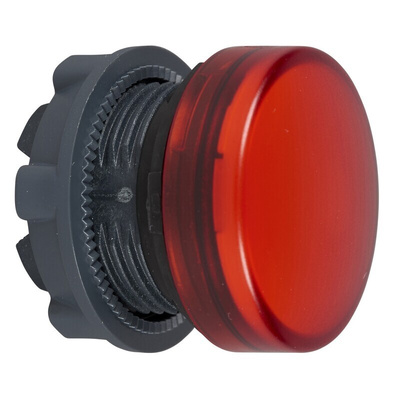

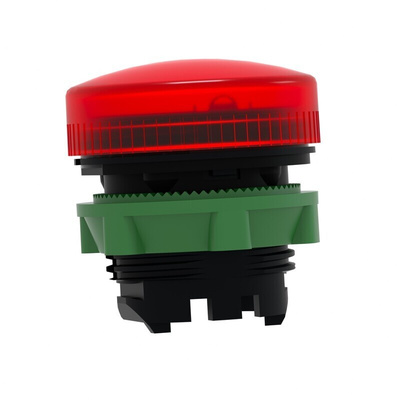

ZB5AV04, Schneider Electric Red Pilot Light Head, 22mm Cutout ZB5 Series

Illuminated Head for Pilot Light

Pilot light heads for use with body consisting of either integral LED only or BA9s incandescent bulb, neon, or LED.

The colour of the head should be matched with the same colour of the chosen LED block.

Standards

IEC, JIS

Approvals

UL, CSA

Schneider Electric Pilot Light Head, Panel Mounting, 18g Weight - Harmony XB5 Series - ZB5AV04

Top off your pilot light with this head from Schneider Electric. Its circular design fits with regulation devices for broad compatibility, while the small cutout diameter of 22mm allows installation in space-tight control panels. As it delivers reliable performance in temperatures between -40°C and +70°C, the unit is more than at home in challenging environments. Industrial contaminants such as oils and chemicals are given the slip thanks to a protective TH external treatment that promotes durability.

Features & Benefits

• Made free from toxic heavy metals, mercury and SVHC to be kinder to the environment
• Plastic bezel resists impact and abrasion for a long service life
• Weighs just 18g, so it puts minimal strain on your setup

Applications

• Packaging equipment
• Manufacturing facilities
• Industrial automation

What colour is this pilot light head?

It's bright red for effective warning signalling.

Does this device keep out debris?

Yes. Carrying an IP69K rating indicates this pilot light head is completely dust-tight and withstands high-pressure and high-temperature washdowns. This makes it ideal for sterilisation and hygiene-critical applications.

UL E164353

Datasheet

Product Environmental Profile

Line Drawing - ZB5AV04

Instruction Sheet - ZB4/ZB5 Series
