ZBY2303, Schneider Electric Legend & Legend Holder Kit for Use with XALD / XALE / XALK / XB4 / XB5 / XB7 Series, Start

Schneider Electric Legend Plates

Schneider Electrics legend plates are essentially an engraved or marked label that can be used with the Schneider Harmony XB4 and XB5 series. This range of legend plates can be used with push-buttons, switches and other similar technologies. The text that is displayed on the legend denotes what happens when you press, pull, push or twist a component.

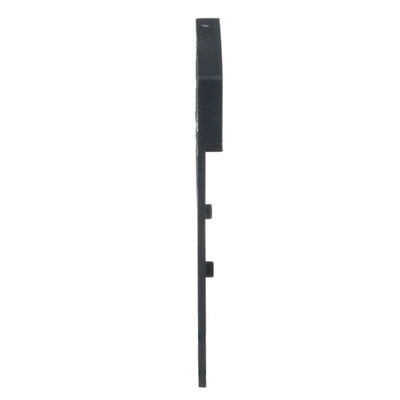

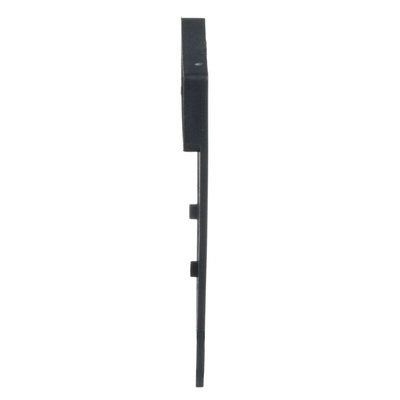

Schneider Electric Legend Plate, Plastic Construction, 2g Weight - Harmony XB Series - ZBY2303

Need a quick and easy way to spot the right button on a busy control panel? Tune in to this Harmony XB series legend plate from Schneider Electric. Crisp white lettering against a black background reads START so you can clearly identify the switch you need. This not only saves time but also reduces the risk of users accidentally choosing the wrong command, which could lead to injury or equipment damage. For flexibility, the unit's compatible with any standard 22mm control or signalling device from the Harmony range. Thanks to its overall dimensions of 30 (W) x 40mm (H), it's large enough to be visible without getting in the way of operations.

Features & Benefits

• Sturdy plastic material withstands impact and abrasion in industrial environments
• Featherlight 2g weight adds minimal strain to your panel

Applications

• Process control
• Factory automation
• Plant machinery

Do I need to buy a holder for this legend plate?

No, the plate comes complete with a compatible holder so can get on with installation without needing extra parts.

UL E164353
