42816-0312, Molex, Mini-Fit Sr Female Connector Housing, 10mm Pitch, 3 Way, 1 Row, Корпус разъема

Molex Mini-Fit Sr. Cable Receptacle Housings

Introducing the Mini-Fit series of plug housings from Molex. Versatile, durable and easily configurable for coupling connectors & PCBs together.

The Mini-Fit series of fittings compliments Molex's existing line of connectors, by adding a higher power system.

Features and benefits

• UL, CSA, TUV approved - giving you the reassurance of thorough testing of the components.

• Available in single/dual row configurations depending on your needs.

• Suitable for Wire to Wire & Wire to Board configurations.

• Compact significant power into a single connector (suitable for design engineers) without the need of multiple connectors.

• If a single row is already specced, no other certification is needed for a dual row.

• All Mini-Fit Sr. features UL94V-0 zero polyester, 10mm pitch. Positive mechanical latches to stop unintentional mounting disengagement.

• Fully isolated towers to prevent shorting or arcing.

• Panel mount ears for design flexibility. Extremely durable, featuring IP68 sealing protection (check product datasheet).

• The Mini-Fit Sr. Series has TPA security (terminal position assurance) which is a secondary locking device inserted into the housing to ensure that terminals are fully inserted and locked into the receptacle.

• Polarised so insertion can only be one direction. Eliminating terminal backouts.

• Headers are made of high temp for six glass filled nylon that is surface mount compatible.

• Surface mount compatibility includes PCB retention clips accomdating PCB board sizes such as .250" .125" .0.93" .0.62".

Applications

The Mini-Ft Sr. series is suited for high power, high current applications such as:

• Industrial networking equipment

• Power transmission

• Telecommunications

• Computer workstations

• Servers

• UPS systems

• Power supplies

• Generators

• Welding equipment

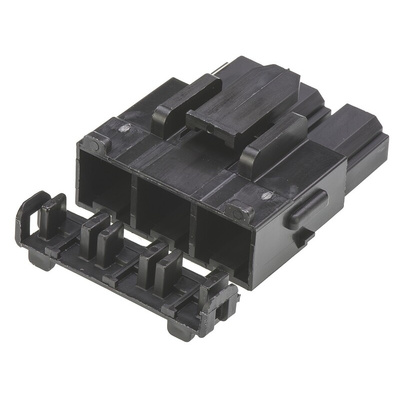

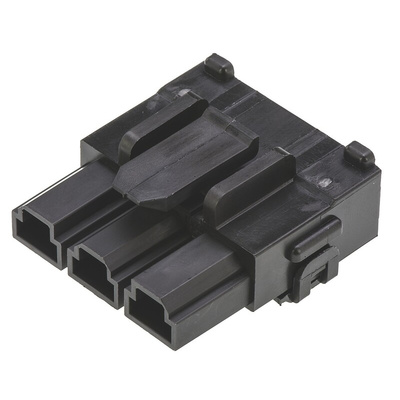

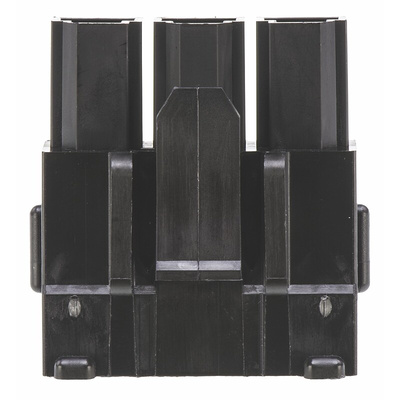

Molex Female Connector Housing, 3 Way, 10mm Pitch - Mini-Fit Sr Series - 42816-0312

Safeguard your PCB's connections with this female connector housing from Molex. It protects up to three electrical hook-ups, letting you safely use your PCB to manage multiple appliances at once. The unit is made from durable PET to prevent impact from damaging your electrical contacts, ensuring reliable connections over a long service life. A maximum current rating of 50A per contact means the housing is ideal for managing high-current applications.

• Locks connectors in place to protect against movement
• Narrow 10mm pitch leaves a small footprint to optimise the packing density of your board
• Polarised design only accepts connectors in the correct orientation to prevent disruption from disconnections

Applications

• Control applications
• Lighting systems
• Consumer electronics industry
• Medical devices

What's polarisation in PCB connector housings?

Polarised housings are shaped to prevent connector ends from being inserted incorrectly. This ensures your contacts line up properly to make a more reliable connection.
