42816-0412, Molex, Mini-Fit Sr Receptacle Connector Housing, 10mm Pitch, 4 Way, 1 Row, Корпус разъема

Molex Mini-Fit Sr. Cable Receptacle Housings

Introducing the Mini-Fit series of plug housings from Molex. Versatile, durable and easily configurable for coupling connectors & PCBs together.

The Mini-Fit series of fittings compliments Molex's existing line of connectors, by adding a higher power system.

Features and benefits

• UL, CSA, TUV approved - giving you the reassurance of thorough testing of the components.

• Available in single/dual row configurations depending on your needs.

• Suitable for Wire to Wire & Wire to Board configurations.

• Compact significant power into a single connector (suitable for design engineers) without the need of multiple connectors.

• If a single row is already specced, no other certification is needed for a dual row.

• All Mini-Fit Sr. features UL94V-0 zero polyester, 10mm pitch. Positive mechanical latches to stop unintentional mounting disengagement.

• Fully isolated towers to prevent shorting or arcing.

• Panel mount ears for design flexibility. Extremely durable, featuring IP68 sealing protection (check product datasheet).

• The Mini-Fit Sr. Series has TPA security (terminal position assurance) which is a secondary locking device inserted into the housing to ensure that terminals are fully inserted and locked into the receptacle.

• Polarised so insertion can only be one direction. Eliminating terminal backouts.

• Headers are made of high temp for six glass filled nylon that is surface mount compatible.

• Surface mount compatibility includes PCB retention clips accomdating PCB board sizes such as .250" .125" .0.93" .0.62".

Applications

The Mini-Ft Sr. series is suited for high power, high current applications such as:

• Industrial networking equipment

• Power transmission

• Telecommunications

• Computer workstations

• Servers

• UPS systems

• Power supplies

• Generators

• Welding equipment

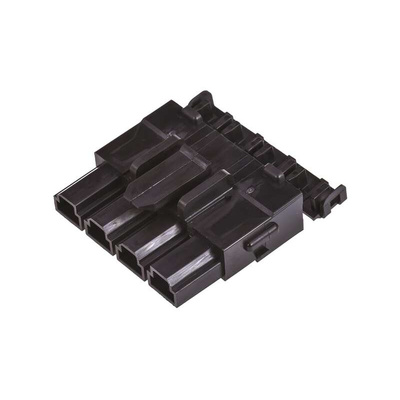

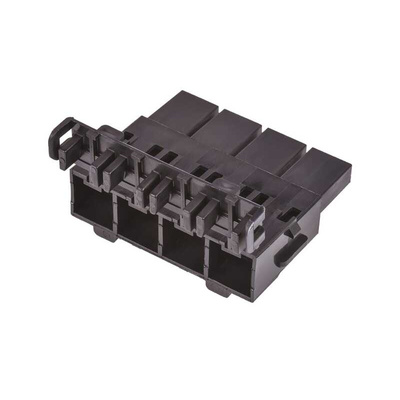

Molex Mini-Fit Sr Cable Receptacle Housing, 4 Way - 42816 Series - 42816-0412

Protect your circuitry and PCBs (printed circuit boards) with this cable receptacle housing from Molex. It's compatible with Molex's range of Mini-Fit connectors and can house up to four high-current contacts at up to 50A each. This makes it a good choice for use in more demanding applications. You can use it for both power and wire-to-board configurations for flexibility in your set-up. Lockable mating prevents the housing from becoming accidentally disconnected, ensuring a secure and reliable connection. This housing is made from a durable PET (polyethylene) material that's resistant to impact and chemicals, so it can withstand use in heavy-duty environments.

• Lightweight construction, with a weight of just 8.24g to prevent your equipment from being too bulky
• Compact size of 43.5 (L) x 14.8mm (W) to save space
• Polarised to ensure proper insertion and prevent damage
• Fully isolated to prevent arcing or shorting

Applications

• Computer workstations
• Power generators
• Welding equipment

Can this product withstand extreme conditions?

Thanks to its wide operating temperature range of -40°C to +105°C, the housing is suitable for use in the vast majority of settings.

Molex Minifit Sr.™ Series
