25062 BK005, Alpha Wire Xtra-Guard 2 Control Cable, 2 Cores, 0.81 mm², Unscreened, 30m, Black PE Sheath, 18 AWG, Кабель

Belden Alpha Wire Control Cable, 300V Voltage Rating, 30m Length - Xtra-Guard 2 Series - 25062 BK005

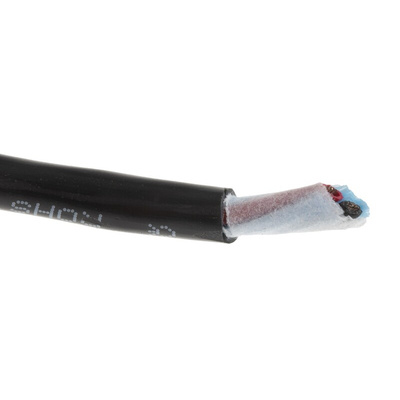

For industrial control systems that demand reliable data communication, look to this robust cable from Belden's Alpha Wire range. A polyurethane outer jacket means it withstands impact and abrasion, and is also resistant to chemicals and UV light, so you can depend on it in harsh conditions. As the cable has a minimum bend radius of 10 times its diameter, it's flexible and can be installed around corners and in tight spaces without the risk of cracking.

Features & Benefits

• Unterminated at both ends for customised connections

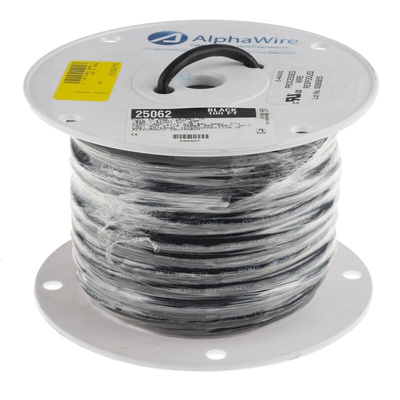

• Cable length of 30m offers enough supply for use in numerous jobs
• Pull tension of 25lb to prevent damage
• Conductors are colour-coded for easy identification and enhanced safety

Applications

• Military ground support systems
• CNC equipment

Can this cable withstand extreme temperatures?

Yes, this cable has a broad operating temperature range of -30°C to +90°C, so you can use it in demanding environments.

Approvals

UL AWM Style 20233; CSA AWM I A/B II A/B FT1; Passes UL VW-1 Flame Test; CSA FT1

Cable Selection Guide

Datasheet - 25062 BK005

Catalogue - Cable Finder Guides
