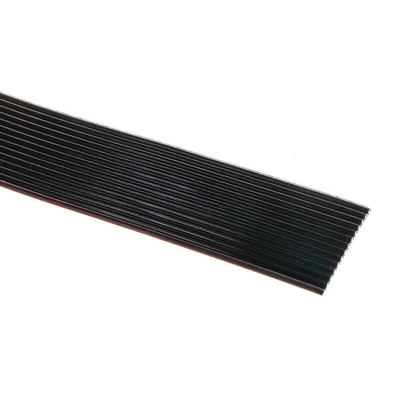

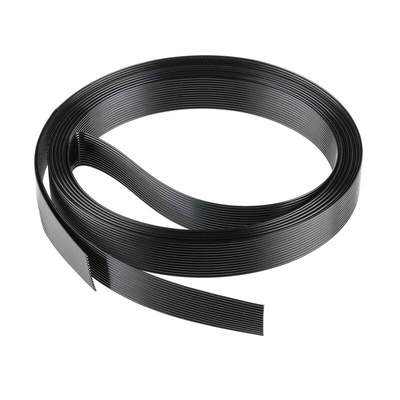

3319-14 5MTR, 3M 3319 Series Flat Ribbon Cable, 14-Way, 1.27mm Pitch, 5m Length, Ленточный кабель

3M High Flex 1.27mm Pitch Ribbon Cable - Type 3319

From 3M, this 3319 ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances.

Features and Benefits

• 28awg stranded wire on 1.27mm (0.050in.) centres allows termination to a broad line of IDC connectors
• Designed to interface with 3M and all other connectors on a 1.27mm (0.050in.) pitch, this high-flex life cable performs 100 million cycles at 44.5mm (1 3/4 in.) diameter
• Constructed of 19 strands of high strength copper alloy provides the longest flex life available for dynamic applications
• Insulation resistance >1x1010Ω/10ft(3m)

Applications

Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Round ribbon cables are more flexible than flat ribbon, and provide space efficient solutions to high data transmission. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Approvals

UL recognised

3M Ribbon Cable, 28AWG, 19-Strand Wire - 3319 Series - 3319-14 5MTR

Don't let complex wiring bulk up your system. Keep things streamlined with this ribbon cable from 3M. Thanks to its flat design, installation is easy behind walls or between computers and servers where space is tight. Thanks to a high flex life of 100 million cycles, this is a hard-wearing choice for dynamic applications where lots of movement can be expected.

• 5m length is ideal for hooking servers and computer systems together
• High voltage rating up to 300V lets you power up standard systems
• Broad operating temperature range between -20°C and +105°C suits use in extreme settings

Applications

• IT systems
• Data centres
• Telecommunication networks
• Automotive design

What's the difference between a ribbon cable and a flat cable?

There is no difference. A flat cable is just another name for a ribbon cable, so if your system calls for a flat line, this product does the trick.

Approvals

UL VW-1

High Flex

Approvals

UL recognised

UL E42769
