3659-10 100FT, 3M Round Ribbon Cable, 10-Way, 1.27mm Pitch, 30m Length, Кабель

3M Screened Round 1·27mm Pitch Ribbon Cable - Type 3659

From 3M, this 3659 screened ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances.

Featured and Benefits

• Stranded tinned copper conductors with black
• PVC insulation
• Double screened with aluminised polyester tape & tinned copper braid
• Continuous split/bond repeat allows for mass termination
• UL AWM style 20267

Applications

Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. round ribbon cables are more flexible than flat ribbon, and provide space efficient solutions to high data transmission. Screened ribbon cabling provides protection against EMI and so is ideal for sensitive equipment in areas where electromagnetic interference is a possibility. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

Approvals

UL Listed

3M Ribbon Cable, 36AWG, 90.88pF/m Capacitance - 3659 Series - 3659-10 100FT

Choose this round ribbon cable from 3M when you need a multitasking solution for your electronic network. A highly conductive braided copper core means you get crystal-clear transmissions with minimal disruptive crosstalk. Dual shielding stamps out electrical noise by providing an additional 35dB of protection. Both ends are unterminated and the cable's zippable, to make it a versatile option for your system.

• Wide operating temperature range between -20°C and +105°C for use in challenging conditions

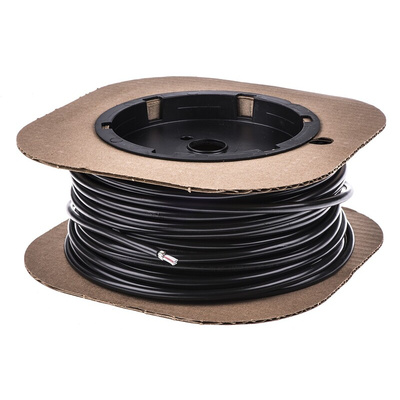

• 30m length can be cut down to size or used as a single long run
• Handles up to 300V to power up most equipment in domestic and industrial settings

Applications

• Medical equipment
• Telecommunications systems
• IT networks

When should I choose a round ribbon cable over a flat one?

Round ribbon cables are more flexible, making them ideal for complex installations, especially if the line moves regularly.

Approvals

UL E 42769/20267CL2

UL E118773
