270205010, Rose Beluga Series Grey Polyamide Handheld Enclosure, Display Window, IP65, 117 x 380 x 68mm, Корпус

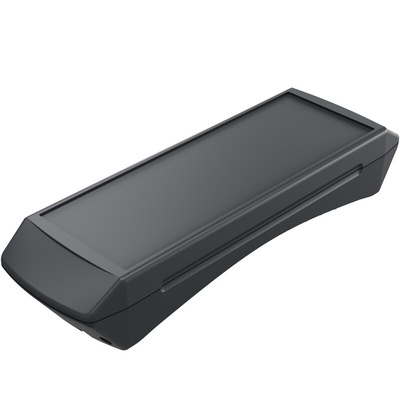

Beluga Model 380 Hand Held Enclosure.

The Rose Beluga series of handheld enclosures suitable for use with automation and control systems including MCR and automation engineering. The enclosure has a large internal area allowing you to easily install display fixing systems benefiting displays of various sizes. The Beluga series of enclosures are made from a hard wearing, double skinned, IP65 Polyamide and you can choose from models with or without display opening. This is a truly versatile, mobile hand held enclosure as it can also be used as an upright table / desktop enclosure, wall mounted enclosure plus carried around on a neck strap.

Features and Benefits.

•Beluga series hand held enclosure, Beluga380.
•Flexible space.
•Ready for keypads and silicone mats.
•With or without display opening.
•Double skinned Polyamide.
•Top and bottom sections.
•Colour is back grey (RAL 7021).
•IP 65 (EN 60529).
•Flammability UL 94 V-2.
•Surface resistance IEC 60093.
•Temperature range -40°C to +60°C.
•Versatile (desk mounted, wall mounted, used with a neck strap).
•Hard wearing.
•Indoors and outdoors.

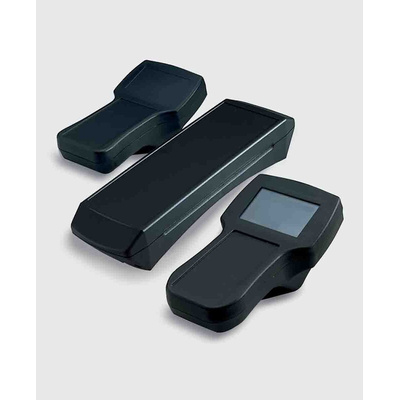

Hand Held Enclosure Models Available.

•Stock number 3438082, Beluga 180.
•Stock number 3438098, Beluga 220.
•Stock number 3438105, Beluga 380.

Enclosure Typical Applications.

•Machine operation and control.
•Setting up work and condition diagnosis.
•Crane control systems.
•Measuring systems (harsh environments including outdoors).
•Display enclosures.
•Measuring instruments.

(IP) Ingress Protection and what it means.

The first number is the protection from solids.
The second number is the protection from liquids.

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ's.

Can the enclosure be used outside?

IP 65 protection from total dust ingress and waterproof (projected from any direction by 6.3 mm nozzle).

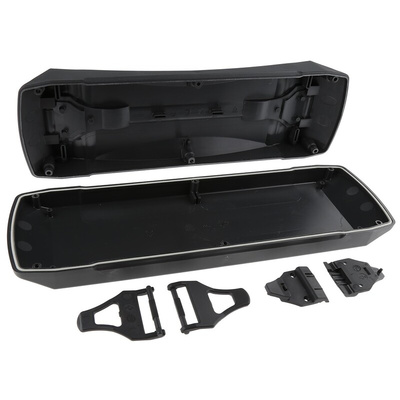

What is Supplied?

•Top.
•Base.
•Fixing domes.
•Fastening and enclosure screws.

What can I install within the enclosure?

•Membrane keypads.
•Displays.
•Emergency OFF switches.
•Key switches.
•Hand wheels and step switches.
•Enabling switches.
•Cable entries.
•Also suitable for many other installations.

Standards

IP65 EN 60529, UL 94 V-2, IEC 60093.

ROSEHandheld Enclosure, 117mm Height, 68mm Depth - Beluga Series - 27020501

Need a convenient handheld storage option for your control and automation devices? Choose this handheld enclosure from ROSE. It has compact dimensions of 117 (height) x 380 (width) x 68mm (depth), so it's easy to handle during operation. The unique internal mounting design ensures you can securely fix displays of different sizes while leaving extra room for enabling switches and cable entries. You can use this product upright on your desktop, or you can mount it on a wall or carry it on a neck strap for versatility.

Features & Benefits

• UL94 V-2 flammability rating means it self-extinguishes in 30 seconds for safety in the event of a fire
• Polyamide housing for resistance to impact and abrasion
• IP65 rating means it's dust-tight and protected against low-pressure water jets
• Chloroprene seal provides robust protection against contaminants

Applications

• Fault diagnosis
• Weather stations
• Retail stock inventories

Can I use this handheld enclosure in extreme temperatures?

Yes. This enclosure has a wide operating temperature range between -40°C and +60°C, so it's suitable for use in harsh environments.

M27020501

Data Sheet 27020501
