DPM 702S, Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %, Вольтметр

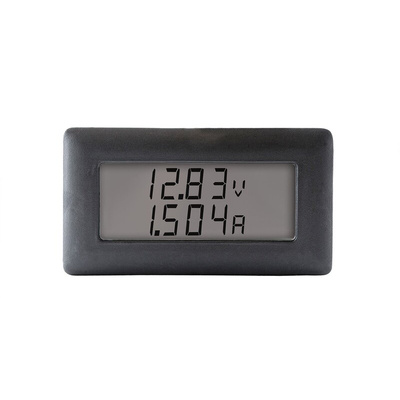

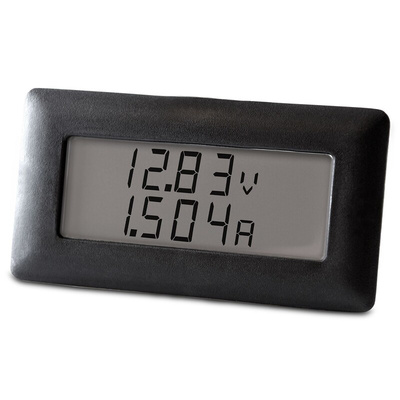

Lascar Digital Voltmeter

The Lascar digital voltmeter is an ultra-low profile LCD meter. It uses advanced components and construction techniques to provides dual-channel voltage measurements at an affordable cost. This product is ideal for applications requiring "matched" readings such as voltage and current, temperature and humidity and more. Both measurement inputs share a common ground line, thereby reducing the number of connections to a minimum. The very low current consumption results in longer battery life and makes it efficient for portable equipment. A low battery warning circuit is fitted as standard. The 10-way pin header can be replaced by screw terminal blocks on request. Its full-scale reading is 200MVDC and supply voltage ranging between 3.5VDC and 7VDC.

Features and Benefits

Digit height 6.4mm (0.25in)
Dual channel
Selectable decimal points
Auto-zero
Auto-polarity
Common signal ground
Annunciators
Number of digits are 3.5
Operating temperature ranging between 0°C and 50°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
