SSCEB31B, Honeywell SSCE Series Plunger Limit Switch, NO/NC, IP68, SPDT, Die Cast Zinc Housing, 240V ac Max, 4A Max

Honeywell SSCE Super Sealed CE Limit Switches

SSCE limit switches form part of Honeywell’s wider miniature limit switches range. They are precise and reliable, even in the toughest environments. These ’Super Sealed’ CE switches are able to function as normal while full submerged in a variety of different fluids.

Features:

• SSCE series limit switches feature gang-mounting capability.
• They have two 25 mm mounting centres.

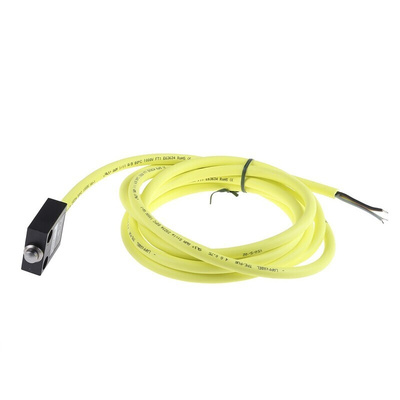

• SSCE limit switches are pre-wired with 3 meter long PUR (Polyurethane) cable.
• They can be used for multiple switching within confined spaces.
• This series of limit switches are constructed from a rugged die-cast zinc housing.
• Excellent mechanical lifespan up to 10 million operations.
• Snap action contacts.

Benefits:

• With a compact design, SSCE limit switches can be used in applications where space is limited and a switch with a small footprint is required.
• They are quick and easy to install, with a simple two-screw mounting design and pre-wired PUR cable.
• The use of polyurethane (PUR) for the cable, also enhances SSCE limit switches ability to withstand harsh conditions. PUR sheathing remains flexible through a wide range of temperatures and has anti-kink properties. It is difficult to cut and incredibly wear resistant. It also offers resistance to humidity, UV radiation and as a barrier to oils and chemicals.
• Unlike many other limit switches from Honeywell, SSCE series are fitted with gold plated contacts instead of silver contacts. Some environmental conditions, such as submersion in liquid, or the presence of moisture can cause silver contacts to tarnish. These conditions do not affect the gold plated contacts, giving SSCE switches greater reliability when switching at low voltages and low currents. Gold plating protects the contacts from contamination while in storage before use as well as during operation.
• You can build your own multiple plunger switch by using the SSCE series’ gang mounting capability.

Applications:

SSCE series limit switches are suitable for applications that require a limit switch to be fully submerged in liquid. They are robust and rugged and can handle harsh applications.

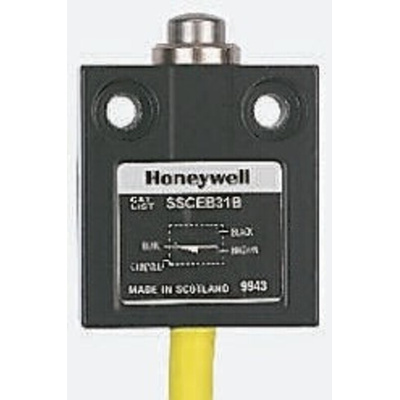

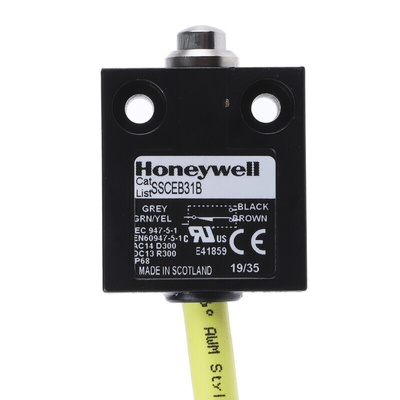

Honeywell Snap-Action Plunger Limit Switch, NO/NC, 240V - SSCE series - SSCEB31B

Pick this snap-action limit switch from Honeywell to give precise electrical control in your application. It consists of an actuator that's mechanically linked to an SPDT (single point, double throw) electrical switch. When an object meets the actuator, the switch triggers the contacts to break or make an electrical connection. At just 40mm wide, this unit's compact dimensions make it ideal for use in confined areas. As part of the SSCE series of super-sealed switches, it can function normally while completely submerged in liquid.

Features and Benefits

• Rugged die-cast zinc housing provides exceptional strength and resilience

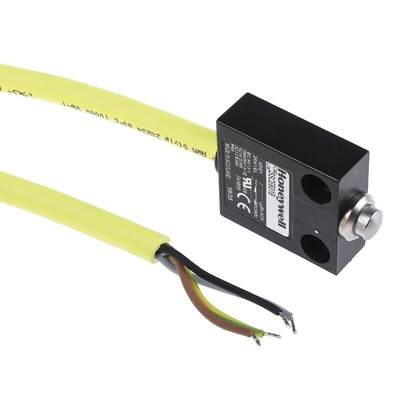

• Comes pre-wired with a 3m, anti-kink, PUR (polyurethane) sheathed cable that remains flexible
• Wide operating temperature range of -40°C to +90°C to suit harsh conditions
• High-performing and durable, with a mechanical life of up to 10 million operations

Application Information

• Automation and assembly lines
• Underwater and marine applications
• Precision engineering

Why does this switch have gold-plated rather than silver contacts?

Harsh environmental conditions, such as submersion in liquid or regular exposure to moisture and cold, can cause silver contacts to tarnish. This is why SSCE-series switches have gold-plated contacts that aren't affected by these conditions, making them more reliable.

Approvals

UL; CSA

Approvals

UL, CSA.
