SSCEB31A1B, Honeywell SSCE Series Roller Lever Limit Switch, NO/NC, IP68, SPDT, Die Cast Zinc Housing, 240V ac Max, 4A Max

Honeywell Miniature Snap-Action Roller Lever Limit Switch, 240V AC - SSCE Series - SSCEB31A1B

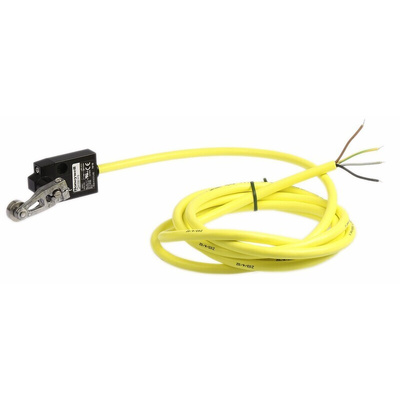

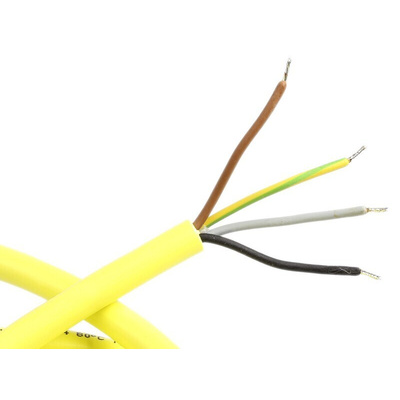

This electromechanical switch from Honeywell is specifically designed for object detection in marine environments. As it's made with a rugged die-cast zinc housing, this robust component provides superior impact and corrosion resistance for use in demanding applications. It's also pre-wired with a 3m cable sheathed in polyurethane (PUR) for effective insulation and enhanced electrical safety.
This component is completely sealed and has an IP68 (ingress protection) rating, which means it can withstand submersion in up to 1.5m of water for 30 minutes. Its compact dimensions of 65.1 (length) x 16 (width) x 43.5mm (depth) make it suitable for a range of applications where space is at a premium.

Features & Benefits

• Simple two-screw mounting for ease of installation
• Wide operating temperature range of -40°C to +90°C for use in a variety of demanding environments
• Current rating of 6A and voltage rating of 240V AC (alternating current) for use in low-voltage applications

Applications

• Marine equipment
• Rail doors
• Mobile light towers

How much maintenance does this component need?

This limit switch is constructed from durable and weatherproof materials and has gold-plated contacts that won't tarnish. This means it requires minimal maintenance.

Approvals

UL; CSA

Approvals

UL, CSA.
