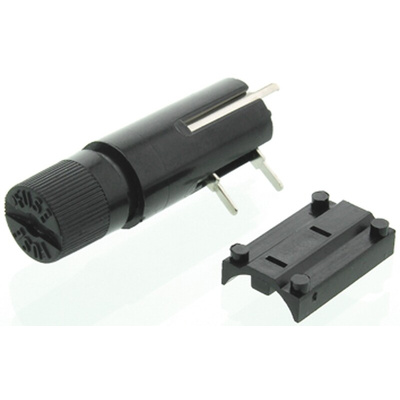

7091.4210, Schurter 10A PCB Mount Fuse Holder for 5 x 20mm Fuse, 250V ac, Держатель предохранителя

Vertical or horizontal mount fuse holder

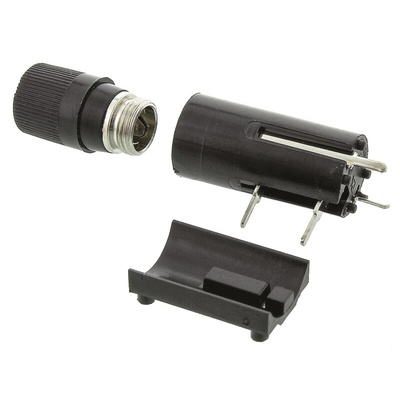

Fuse holder for 5 x 20 mm fuse, fitted with a screw cap.
Originally designed with 4 pins: 2 for mounting parallel to the PCB and 2 for perpendicular mounting.
Unused pins may be cut and removed.

Approvals

GAM, T1 and LNZ listed

Schurter Fuse Holder

The Schurter horizontal or vertical through-hole mount fuse holder, with easy finger grip, has an electrical rating of 250VAC and 10A supply voltage. It provides the installation hardware for a fuse and preventing accidental misuses in the circuit. It's available in 5x20mm cartridge type. The fuse carrier with screw cap and knob are spring-loaded bayonet type with screwdriver slot.

Features and Benefits

• Fuse carriers are easily replaceable
• Operating temperature ranges between -40°C and 85°C
• Shock safety
• Thermoset is used as a body material
• Unused pins may be cut and removed

Applications

• Household appliance
• Industrial equipment

Certifications

• CSA C22.2 no.
• GAM
• T1 and LNZ listed
• UL 4248-1 / UL 512
• UL File Number: E41738

All fuses have Thermoplaste Polyamide bodies
