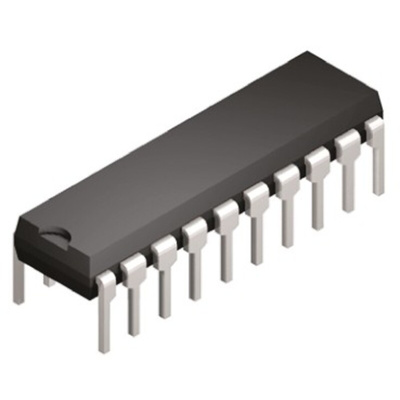

TLC7226CN, Texas Instruments, DAC Quad 8 bit-, 143ksps, ±2LSB Parallel, 20-Pin PDIP, ЦАП

Digital to Analogue Converters 8 Bit, Texas Instruments

The Texas Instruments TLC7226 consist of four 8-bit voltage-output digital-to-analog converters (DACs) with output buffer amplifiers and interface logic on a single monolithic chip. Separate on-chip latches are provided for each of the four DACs. Data is transferred into one of these data latches through a common 8-bit TTL/CMOS-compatible 5-V input port. Control inputs A0 and A1 determine which DAC is loaded when WR goes low. The control logic is speed compatible with most 8-bit microprocessors.

Four 8-Bit D/A Converters
Microprocessor Compatible
TTL/CMOS Compatible
Single Supply Operation Possible
CMOS Technology
Applications
Process Control
Automatic Test Equipment
Automatic Calibration of Large System Parameters, e.g. Gain/Offset
