RS PRO Stainless Steel M8 x 1.25 Clevis, 42mm x 16mm

RS PRO Stainless Steel M8 x 1.25 Clevis, 42 mm x 16 mm

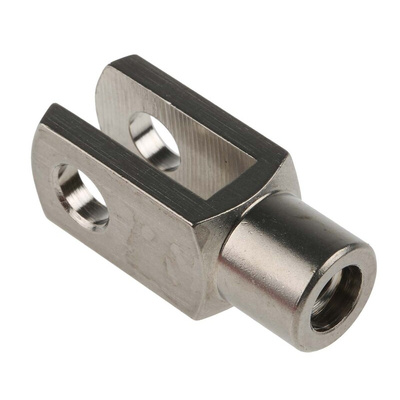

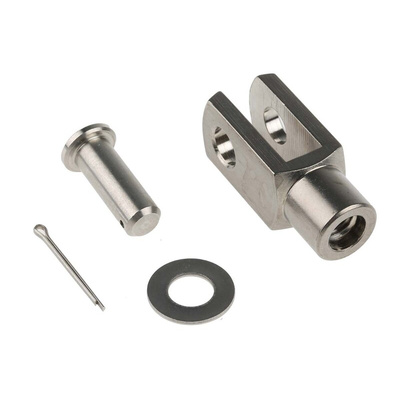

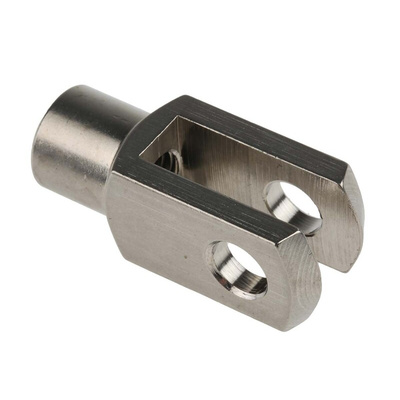

These small but sturdy clevis fasteners are part of our tried-and-tested RS PRO range. They're U-shaped fasteners with a bolt onto which items can be hooked. These fasteners incorporate a strong and flexible connection in a space-saving and durable design.

Measuring only 42 mm x 16 mm, they're compact and are threaded for an M8 x 1.25 bolt to deliver a secure fit that won't come loose easily. What's more, these clevis fasteners are made from high-quality grade 303 stainless steel and they're zinc plated. This gives them superior toughness and corrosion resistance.

Rigorously tested and inspected, these fasteners conform to international standards to ensure they're protected from electrostatic discharges of greater than or equal to 100 V human body model. Thanks to their sturdy construction, they're well-suited for harsh environments such as those found in petrochemical facilities.

Features and Benefits

• Clevis fasteners made from grade 303 stainless steel
• M8 x 1.25 rod connection thread
• Ball diameter of 8 mm
• Overall length of 42 mm
• Overall width of 16 mm
• Zinc finish for increased corrosion resistance
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Operating temperature range -30°C - +100°C
