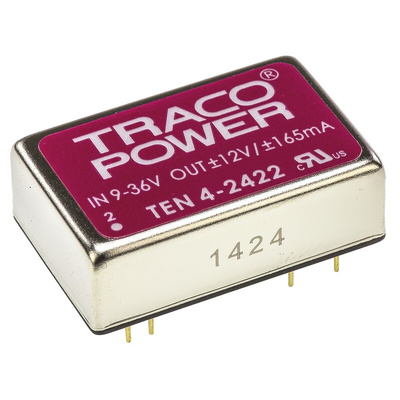

TEN 4-2422, TRACOPOWER TEN 4 DC-DC Converter, ±12V dc/ ±165mA Output, 9 → 36 V dc Input, 4W, Through Hole, +75°C Max Temp

Traco Power DC-DC Converter, 12V DC Output Voltage, 83% Efficiency - TEN 4 Series - TEN 4-2422

Take charge of your voltage with this DC-DC converter from Traco Power. It turns 9 to 36V DC inputs into a steady 12V DC output, so it's versatile and built to withstand small fluctuations in voltage. The unit cuts heat build-up and electrical losses, thanks to its 83% efficiency. There's no risk of electromagnetic interference tripping its performance, as it has an EN 55022-compliant filter to ensure consistent signal transmission. It also features built-in short-circuit protection to help prevent damage and lengthy downtimes caused by current spikes.

• Broad operating temperature range between -40°C and +75°C for use in tough conditions
• Lightweight unit weighing only 16.2g puts minimal strain on your PCB

Applications

• Medical devices
• Telecommunications systems
• Automated factory processes
• Consumer electronics
• Testing and measuring instruments

What does it mean when a DC-DC converter is isolated?

Isolation means the incoming and outgoing currents are kept separate to prevent electric shocks and improve safety. This DC-DC converter has 1.5kV isolation.

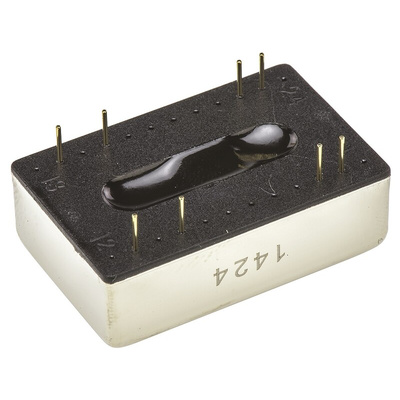

How do I mount this DC-DC converter?

Thanks to its through-hole mounting design, you just punch the pins through the corresponding holes on your PCB.

Approvals

EN60950; IEC950; UL1950

TEN 4-2422 Datasheet
