Kubler Digital Counter

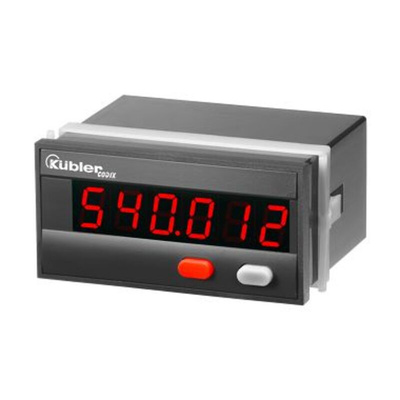

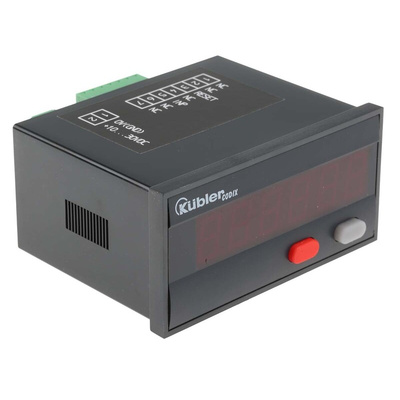

The Kubler CODIX 540 series digital counter is a 6-digit, LED display, panel mount and simple voltage powered device. It has voltage rating ranges between 10VDC and 30VDC. It is pulse counter for fast and slow count pulses, with NPN, PNP input signals. This counter can function as a totalizer with digital inputs.
This counter has a maximum count frequency of 60KHz.
Features and Benefits
Input pulse shape variable (Schmitt trigger)
Overflow condition displayed
Simple totalising and quantity counter
Large keys – can also be operated when wearing gloves
Uniform menu-driven programming and operation
Panel cut out dimensions are 92mm x 45mm

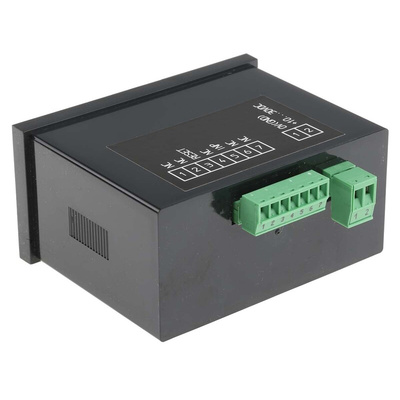

Plug-in screw terminals
Operating temperature ranges between -20°C and 65°C
Applications
Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines
Certifications
IP65 rated
EN 55011 class B
EN 61000-6-2
Codix 540,digital,display,counter,Kubler,10-30Vd.c. Instructions & Tech Data6.540.012.300 DatasheetOperating Instructions
