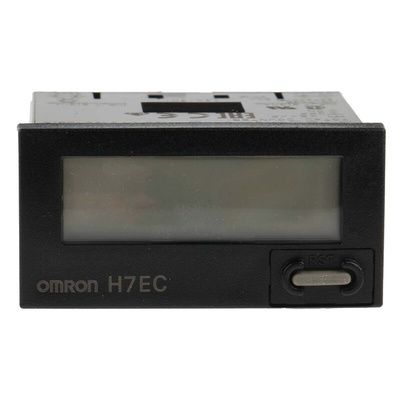

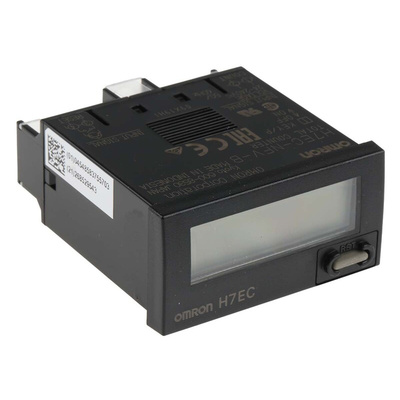

H7EC-NFV-B, Omron H7EC Counter, 8 Digit, 20Hz, 24 → 240 V ac/dc, Счетчик

H7E Series Tachometers/Counters (LCD)

Large totaliser display
Self powered by internal battery which can also be replaced
Key protected switch to prevent accidental reset switch operation
Dual operation mode
Short body of only 48.5mm
Finger touch protection

Omron Digital Counter

The Omron H7EC series digital counter is an 8-digit LCD display, panel mount,self-powered device. This counter is available with a 7-segment no backlight large display with an 8.6mm character height. The H7E family includes total counters, time counters, tachometers and PCB-mount counters. This counter has a maximum count frequency of 1KHz.

Features and Benefits

Key protected switch to prevent accidental reset switch operation
Dual operation mode
Finger touch protection
Counting range is between 0 and 99999999
Front dimension is 48mm x 24mm
Plug-in screw terminals
Operating temperature ranges between -10°C and 55°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines

Certifications

IP66 rated
CE certified

Omron Panel Mounting 24 x 48

All units are resettable. Panel cut out is 22 x 45 with the front fascia sealed to IP65 and has an operating temperature range of -10 to +55°C

Datasheet
