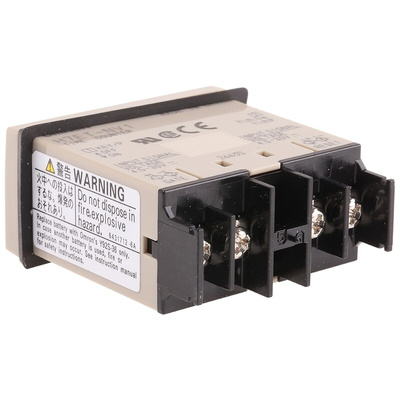

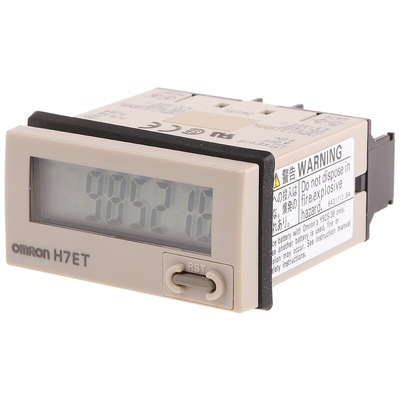

H7ET-NV1-B, Omron H7E Counter, 7 Digit, 4.5 → 30 V dc, Счетчик часов

Electronic timer for 24 x 48 panel mounting, H7ET Series

Large totaliser display with 8.6-mm high digits and backlighting options
Available with black or beige casing
24 ´ 48 mm DIN casing
Timers with 7-digit LCD display
Available with PNP/NPN universal DC voltage inputs
Self-powered by internal battery, which provides continuous use for approximately seven years and
can also be replaced
Key-protected switch to avoid accidental reset of the switch
Two operating modes
IP66 protection on front panel
Short body, just 48.5 mm long
Handling protection
Conforms to EMC EN50082-2, EN50081-1 standards for commercial,
residential and light industry uses
Dimension: Width 48 mm, Height 24 mm, Depth 48.5 mm, (aperture 45 x 22.5 mm)

Omron Panel Mounting 24 x 48

All units are resettable. Panel cut out is 22 x 45 with the front fascia sealed to IP65 and has an operating temperature range of -10 to +55°C

CSA LR22310-398
