RSF66A25B125, Sensata / Cynergy3 Cynergy3 RSF66 Series Vertical Polyphenylene Sulfide Float Switch, Float, 1m Cable, Direct Load, 240V ac Max, 120V dc

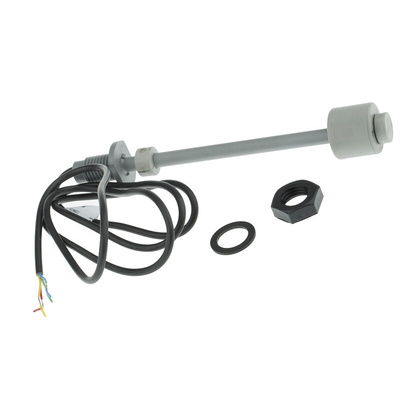

Sensata Cynergy3 Dual Switch Point Vertical Float Switch, 1m Cable, Direct Load Switch Output - RSF66 Series - RSF66A25B125

Choose this dual switch point float from Sensata Cynergy3 for both high and low liquid level switching. The versatile device can be connected to an electromechanical relay to control the filling or emptying of tanks. It's made from polyphenylene sulphide (PPS), which is highly durable and compatible with a wide range of liquids. This float is frequently used together with a smart digital monitoring system such as a PLC (programmable logic controller).

Features & Benefits

• Vertical switch that can be mounted on the top or bottom of a tank for versatile installation
• Wide operating temperature range of -10°C to +85°C for use in demanding environments
• PVC (polyvinyl chloride) cable sheath for excellent resistance to abrasion and moisture

Is this float switch suitable for use in harsh liquids?

Polypropylene sulphide is suitable for use with liquids containing detergents, alkalis and inorganic and organic chemicals. It also withstands acidic conditions, such as those found in electroplating and metal cleaning. This makes it an excellent choice for use in tanks containing harsh substances.

WRAS 0107047

RF66 Series Float Switch Datasheet
