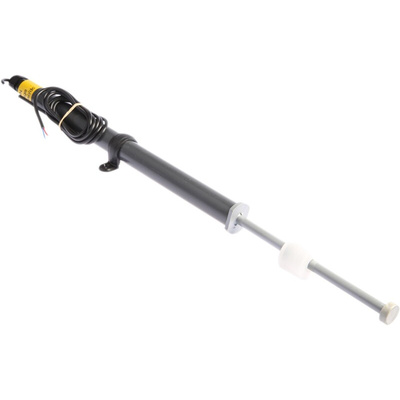

RSF64BEXS, Cynergy3 Vertical Float Switch, Polyphenylene Sulfide, Direct Load, Float, 1.5m

Cynergy3 Float Switch

The Cynergy3 float switch is a vertical mount type and has direct load output. This float switch has a polyphenylene sulphide body. The switch has a switching depth of 123mm to 423mm and switching action is N/C (make on fall). This is a close float switch that is permanently joined to a 300mm PVC tube. This version has contacts that are closed when the tank is empty.
Warning:
The cable entry point must not under any circumstances be submerged
The horizontal switches should be fitted through the wall of a tank so that the cable is on the outside
The vertical type mounting thread and cable entry must be above the highest level of the liquid

Features and Benefits

Maximum switching power is 25VA
Cable length is 1.5m
Operating temperature ranges between 0°C and 75°C
Tube material is PVC class 7
Cable length is 150cm PVC 2 core 7/0.2
Up to 3 extension units (306mm long) added to provide insertion depths up to 1350mm
Minimum fluid SG is 0.65

Certifications

ISO9001
