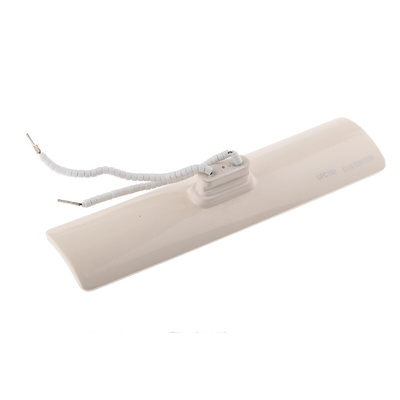

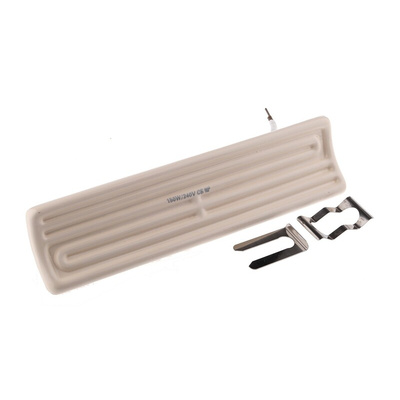

RS PRO Ceramic Heating Element, 245mm, 150 W, 230 V ac, Керамический нагревательный элемент

Ceramic Heating Elements

These heating elements are extremely energy efficient converting 96% of the input power to heat with a maximum temperature of 700ºC

5000 - 10,000 hours working life
Available in two sizes and with or without integral type K thermocouple for monitoring and control
Heating wire embedded into concave shaped heater creates infrared in parallel rays
230V ac supply
Suitable for long wave radiation, curing, heating and drying
Thermocouple included with RS Stock Numbers - 376-2688, 376-2694 and 376-2701

Note

Stock Item 376-2672 has a built in Thermocoupler and is 4 wire.

Multi-Purpose Process Heaters

In order to obtain optimum performance from these products, it is advised that temperature sensing and control elements be used with them.

Warning

These heaters shall only be used where adequate electrical, thermal and mechanical barriers are provided to prevent access to hazardous parts without the use of a tool.
