95B11PA000, CAL 9500 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 2 Output Linear, Relay, 100 V ac, 240 V ac Supply Voltage, Регулятор температуры

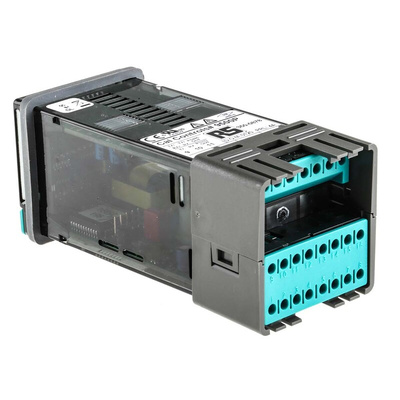

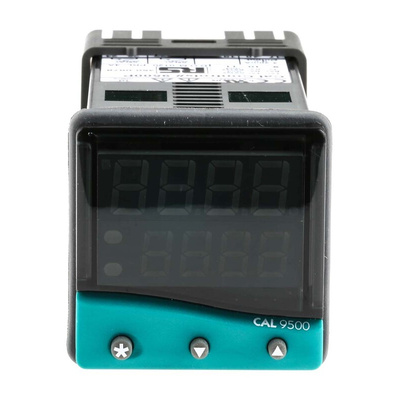

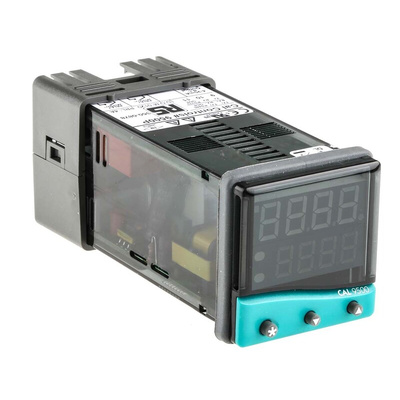

CAL Temperature Controller

The CAL 9500 series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 48mm (1/16 DIN) device. It has one 4mA to 20mA analogue current and other two relay output. This controller has an input type of RTD and thermocouple. It has a programmer function with up to 31 programs (126 segments max). It is reliable within the most demanding processes and manufacturing applications. It has an impact-resistant smoked fascia with rubberised buttons and positive feedback. The PID tuning is simple and efficient whilst the unique DAC function minimises overshoot. The integrated programmer function is ideal for applications requiring temperature profile control.

Features and Benefits

2 x 4 digit LED display with 2 output LEDs
Easy-to-use auto tuning
CALgrafix configuration and data logging software
Panel depth is 106.7mm
Simple menu-driven configuration

Applications

Bottling and beverage production
Dairy industry
Food industry
Furnaces
Kilns
Laboratory and scientific equipment
Ovens
Plastics machines
Rubber and plastics manufacturing

Certifications

CE certified
CSA compliant
IP66 rated
UL approved

9500 Process Control Range Product Data

Manual - Full

Brochure

Manual - Concise

Accessory Guide

Product Guide
