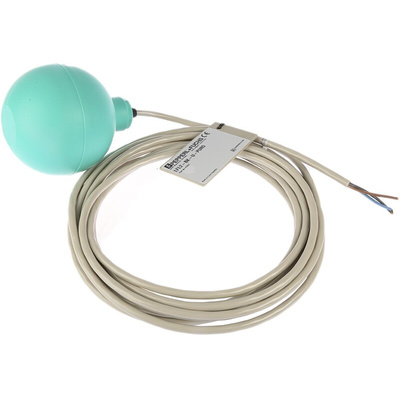

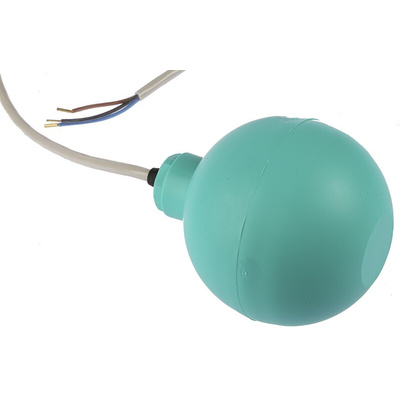

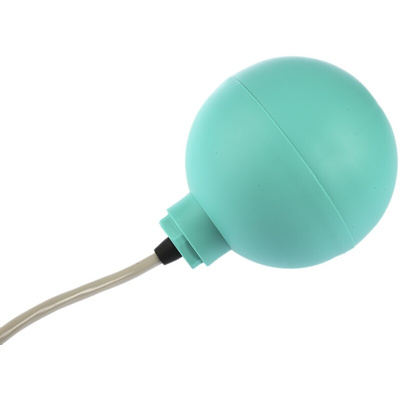

LFL2-BK-U-PUR5, Pepperl + Fuchs Horizontal Polypropylene Float Switch, Float, 5m Cable, Direct Load

Pepperl + Fuchs Float Switch

The Pepperl + Fuchs microswitch (changeover contact) integrated with a PP float. It is activated in the event of deviations from the horizontal position. The switching ball in the float moves along an axis and activates the microswitch. This device can be used with any sequential circuit, as long as the circuit can support the electrical circuit values of the switching elements. It has a supply voltage of 250VAC/150VDC.

Features and Benefits

It uses PUR cable material

Switch element: Micro switch, mercury-free
Limit value detection for fluids
Sleeve design: Small diameter, mounting through G1 tap hole possible
Ball design: High buoyancy
Density sleeve design: ≥ 0.8 g/cm3 and ball design: ≥ 0.6 g/cm3
Switching is started by the rocking motion of the sensor
It is ideally suited to low density liquids
The switch element is mercury free
The float switch is small in diameter, allowing users to fit into tap holes as small as G1
Density: ≥0.6g/cm3
It has 5m cable length

Certifications

IP68 rated
EN 50178
EN 60529
EN 60947-5-2
EN 60947-5-2 A1
CE certified
