PMC 46/01, POP Copper Coated, Plain Steel Earth Tab Rivet, 5.3mm, Заклепка

Earth Tab POP® Rivets

From POP®, a series of Earth Tab Rivets providing an effective earthing connection to pre-painted sheets. The high-strength, low resistance rivets are often used in place of fasteners when working with sheet metal panels. Earth Tab Rivets offer a convenient method of attaching 6.3mm spade terminals to metal panels or enclosures.

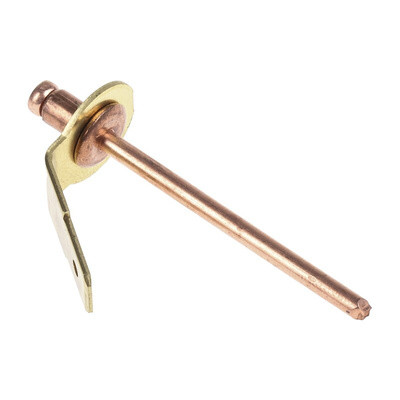

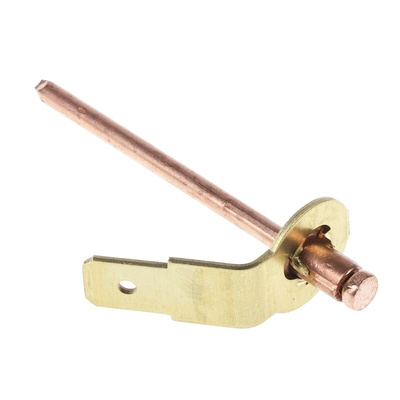

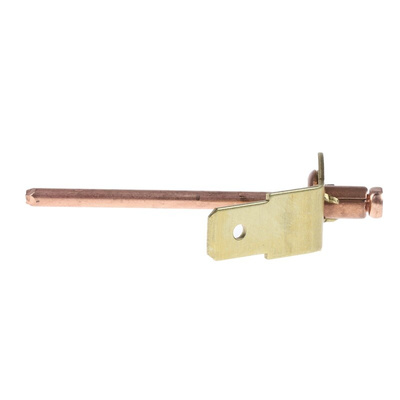

The assembly is made up of a copper rivet and a copper-coated steel mandrel. A brass spade terminal with paint piercing tines is pre-attached. The rivet stem is copper-plated steel, ensuring a strong joint is made.

Features and Benefits

• Constructed from high-quality materials
• Provides strong, vibration resistant joints
• High shear and tensile strength
• Ideal for use in thin sheet materials
• Dome-shaped head
• Body diameter is 4mm
• Rivet size is 5.2mm
• Grip range is 0-2mm
• Available with a single or double 6.3mm x 0.8mm tab

Applications

Earth Tab Rivets are used in a wide range of industrial and electrical applications. Some of the most common are;

• Automotive
• Electronics
• Cabinets and enclosures
• Panel building

Datasheet

Fasteners Selection Guide 56 Pages
