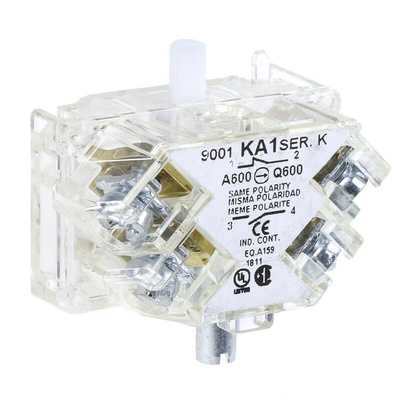

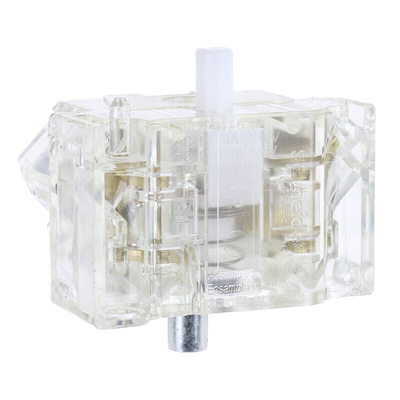

9001KA1, Schneider Electric Harmony 9001K Series Contact Block, 250V, 1CO

Schneider Electric Harmony 9001K series (KA1) Square D Contact Block with Protected Terminals.

Presenting the Harmony 9001K range of Contact Blocks by Schneider Electric. Quality, durable and efficiency all in one, these range of contact blocks go through rigorous testing to ensure the final quality product reaches a high-quality standard.

Features and Benefits.

• Lightweight, easy to fit and configure screw clamp terminal connectors. Easily removable and adjustable.


• 1 NO / 1 NC versions are available.


• 1,000,000 cycles mechanical durability, increases the longevity of the contact block.


• Schneider Green Premium product as standard across the 9001K Contact Block range. Environmentally friendlier than alternatives, easy to dispose of safely.


• 8 month warranty period with Schneider Electric.


• 1.5mm² conductor, Up to 6 contact blocks can be fitted in total


• Operating Temperature Range -25°C to +75°C

9001KA1 - Protection ratings & Safety features.

• IP 20 conforming to IEC 60529 (protection against certain sized tools, moisture etc.)


• EN/IEC 60947-5-1


• UL 508 & CSA C22.2 No 14.


• Vibration resistance 7 gn (f = 2...500 Hz) conforming to IEC 60068-2-6


• Shock resistance to 50 gn conforming to IEC 60068-2-27


• Short circuit protection via a 10 A cartridge fuse which conforms to EN/IEC 60947-5-1.


• Class of protection against electric shock @ Class II conforming to IEC 61140

9001KA1 Features.

• Contact block (30 mm) with protected terminals.


• 1 C/O contacts – standard operation.


• Screw clamp terminals. Cross slotted screw head.


• Silver alloy contacts.

Applications.

• Square D momentary non-illuminated push buttons


• Rotary selector switches

Compatible9001K Pushbuttons and Switches.

Part number\t9001KS43FB\tStock number\t5428188
Part number\t9001KS46FB\tStock number\t515820
Part number\t9001KS63FB\tStock number\t6237472
Part number\t9001KS53FB\tStock number\t516007
Part number\t9001KS88FB\tStock number\t6237488
Part number\t9001KS11K1R\tStock number\t5428194
Part number\t9001KS11K3R\tStock number\t5428201
Part number\t9001KS43K5R\tStock number\t5428217

Contact Block 9001KA1
