FLUKE-718 100, Fluke -850mbar to 6.895bar 718 Pressure Calibrator - RS Calibration, Калибратор давления

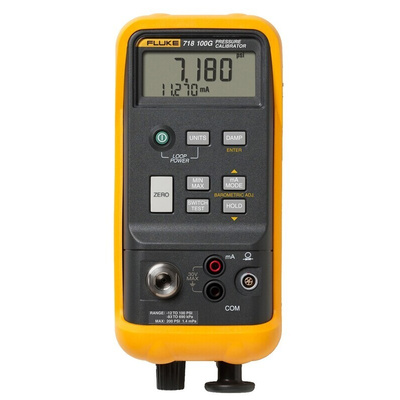

Fluke 718-30G and 718-100G

The complete solution to pressure calibration
The Fluke 718 Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.

Features and Benefits

• Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device
• Integrated pump is easily cleaned when accidently exposed to fluids that reduces cost of ownership and repairs and enables servicing the pump in the field
• Error % calculation for quicker pass/fail decision making in the field
• Best in class mA accuracy of 0.015% for better measurement confidence and workload coverage
• Min/Max/Hold to capture changing measurements
• Switch test feature for quicker and more accurate pressure switch testing
• New 1 and 300 PSI pressure ranges mean fewer extra tools required
• 1, 30, 100 & 300 PSI ranges now available
• 100G:- Range: -12 psi to 100 psi, (-850 mbar to 7 bar, -85 to 689.48 kPa)

Supplied with

protective yellow holster, test lead set, crocodile clips, 9V alkaline battery (fitted)

718 Pressure Calibrators Product Data

Fluke 718 Pressure Calibrator - User Manual
