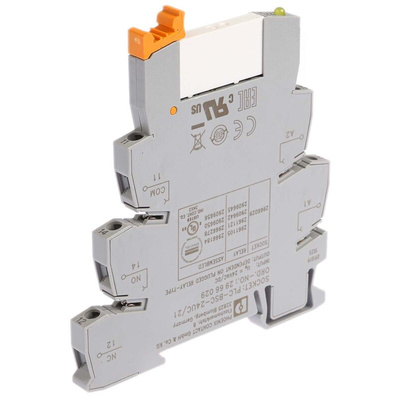

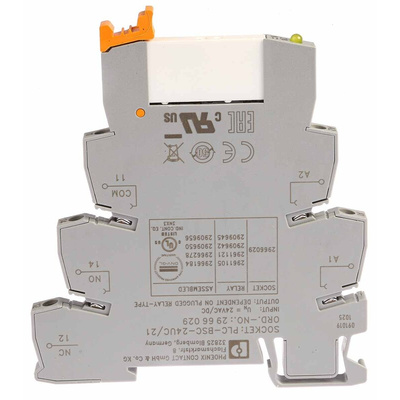

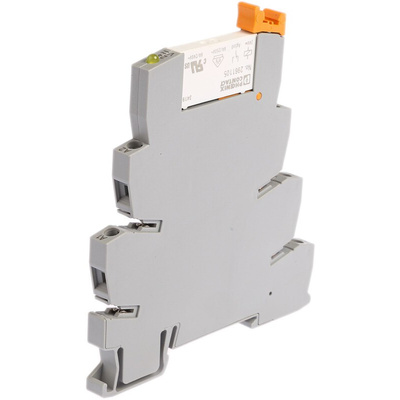

2966184, Phoenix Contact PLC-RSC- 24UC/21 Series Interface Relay, DIN Rail Mount, 24V ac/dc Coil, SPDT, 1-Pole, Модуль

A 6.2 mm PLC interface relay module designed to be mountable on DIN rail NS 35/7.5. Featuring a basic terminal block with screw connection and a plug-in miniature power relay.

Phoenix Contact PLC-RCS Relays Series

This range of compact PLC relays from Phoenix Contact gives you a great choice of easy connection technology. The electromechanical relays act as the interface between your automation equipment and system peripherals.

Features and Benefits:

• Saves space on the DIN rail
• Cost-effective
• Use the same electromechanical relay module design for both AC and DC switching voltage
• DIN rail mounting
• SPNO and SPDT models available
• Yellow LED operating voltage display
• Free-wheeling diode Damping diode
• Dimensions 94 x 80 x 6.2 mm

Typical Applications:

The PLC relays are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.

Phoenix Contact Interface Relay Module, 24 V AC/DC - PLC-RSC-24UC/21 - 2966184

Ensure reliable signal exchange between process peripherals and a central control system with this Phoenix Contact interface relay module. It provides safe electrical isolation between inputs and outputs and high short-term overload resistance. The robust PLC (programmable logic controller) unit is suited to industrial control cabinets.
The relay features a universal design that's compatible with most circuit boards, while its space-saving size permits maximum packing efficiency. It's protected from environmental contaminants and has an IP67 (ingress protection) rating, which means it's dust-tight and water-resistant. An integrated interference suppression circuit ensures that nearby electrical components won't affect its function.
This component can be used with both AC and DC voltage. It features safe isolation certified to DIN EN 50178 standards, so it's approved as suitable for power installations. Its operating temperature range of -25°C to +60°C makes it compatible with a variety of challenging environmental conditions.

• Flame retardant
• Silver alloy contact material
• SPDT (single pole double throw) contact configuration
• Dimensions of 6.2 (W), 80 (H) and 94 mm (D)
• Input current of 11 mA (AC) and 8.5 mA (DC)
• Maximum input voltage of 24 V AC/DC
• Screw terminal type
