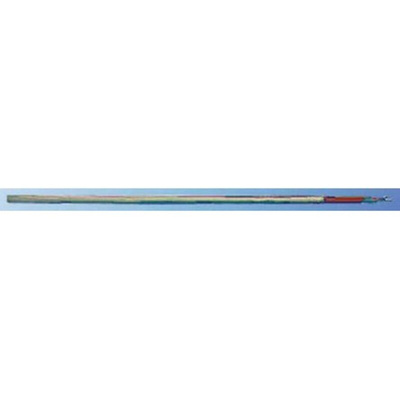

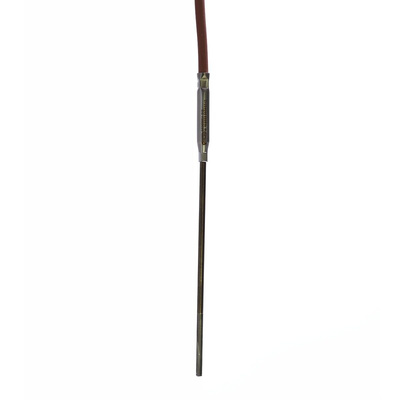

902250/32-415-1001-1-3-100-11-2500/000, Jumo PT100 RTD Sensor, 3mm Dia, 100mm Long, 3 Wire, Probe, Class B +600°C Max, Датчик

Sheathed resistance thermometer in accordance with IEC 751

Working temperature from -50 °C → +600 °C
Flexible, thin-walled sheathed wire made of stainless steel; the low-ohm copper internal conducting wires are embedded in compressed, fire-resistant magnesium oxide for vibration resistance
Two or three-conductor circuit
Rapid response times
Connection lead made of silicon, 2.5 m, cable temperature range: -50 °C → +180 °C
Application-specific installation lengths

Application

Chemical plants, power plants, pipelines, in engine building, on test benches and at all measurement sites where flexibility and problem-free replacement are desirable

Mineral Insulated Resistance Thermometers Data Sheet
