1881325, Phoenix Contact 2.5mm Pitch 2 Way Pluggable Terminal Block, Plug, Cable Mount, Spring Cage Termination

FK-MC PCB Connectors - Phoenix Contact

The FK-MC series from Phoenix Contact are MICRO COMBICON plug-in PCB connectors. These connectors are made user-friendly with no tools needed for installation as it is simply a push in technology, along with a defined contact force the ensures the connection remains stable over the long term. Not to mention, these PCB connectors are easily tested with a 1mm diameter test connector that simply plugs in, allowing for rapid testing. The FK-MC series are rated for 4 A with a voltage of 160 V and boasts a 2.5mm pitch for versatile use.

The contact material is the FK-MC connectors are Cu (Copper) alloy and they're built in a green polyamide housing. Colour coded actuation levers can be found on the front and allow you to form a strong connection without the need for any specialist tools.

Features and benefits:

• Spring clamp technology for quick connection - no tools needed


• High copper content for low resistance and greater conductivity


• Integrated test points for testing with connector inserted


• 2 to 12-way versions


• Flammability rating UL94 V0


• Defined contact force allows your connection to stay strong over-time


• 1mm testing port for convenient testing


• Operation and conductor connection from one direction enable integration into front of the device

Applications:

The MICRO COMBICON 0.5 series can be used typically in applications such as, but not limited to, control wiring, instrumentation, control and measurement and industrial electronics.

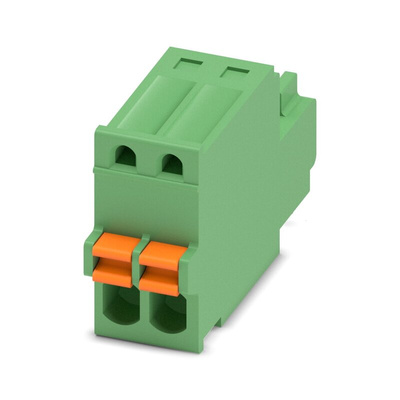

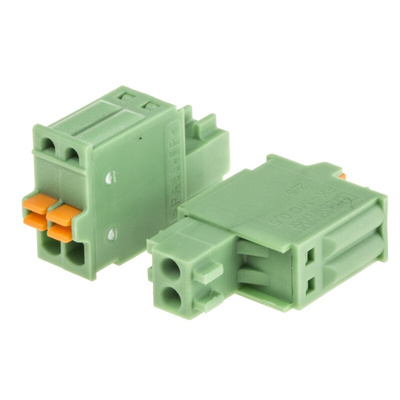

Phoenix Contact Pluggable Terminal Block, Straight Body, 4A Contact Rating - FK-MC 0,5/ 2-ST-2,5 - 1881325

Ready to add plug-and-play connections to your PC card? Install this pluggable terminal block from Phoenix Contact. It's a two-way unit that accepts two wires in a jiffy, thanks to the push-in spring connection. To use it, insert crimped wire ends until the component catches onto it. If you need to remove that cable at any point, push down on the orange tab and pull with about 6N of force.
To protect your system, the PA insulation resists fire and withstands surges up to 2.5kV. The unit's copper contacts are highly conductive to support fast-paced equipment. You can rest easy, as those connections are hot-dip tin-plated to minimise corrosion, giving you smooth performance in the long term.

Features & Benefits

• PA insulation is fire-resistant and self-extinguishing to protect your components
• Compact dimensions of 5.6 (W) x 19.05 (L) 11.75 (H) save space on densely packed PCBs
• Suitable for extreme environments as it withstands +100°C temperatures for up to 168 hours before breaking down
• Finger-safe for risk-free handling
• Can be withdrawn and inserted up to 25 times for longevity
