1881354, Phoenix Contact 2.5mm Pitch 5 Way Pluggable Terminal Block, Plug, Cable Mount, Spring Cage Termination

FK-MC PCB Connectors - Phoenix Contact

The FK-MC series from Phoenix Contact are MICRO COMBICON plug-in PCB connectors. These connectors are made user-friendly with no tools needed for installation as it is simply a push in technology, along with a defined contact force the ensures the connection remains stable over the long term. Not to mention, these PCB connectors are easily tested with a 1mm diameter test connector that simply plugs in, allowing for rapid testing. The FK-MC series are rated for 4 A with a voltage of 160 V and boasts a 2.5mm pitch for versatile use.

The contact material is the FK-MC connectors are Cu (Copper) alloy and they're built in a green polyamide housing. Colour coded actuation levers can be found on the front and allow you to form a strong connection without the need for any specialist tools.

Features and benefits:

• Spring clamp technology for quick connection - no tools needed


• High copper content for low resistance and greater conductivity


• Integrated test points for testing with connector inserted


• 2 to 12-way versions


• Flammability rating UL94 V0


• Defined contact force allows your connection to stay strong over-time


• 1mm testing port for convenient testing


• Operation and conductor connection from one direction enable integration into front of the device

Applications:

The MICRO COMBICON 0.5 series can be used typically in applications such as, but not limited to, control wiring, instrumentation, control and measurement and industrial electronics.

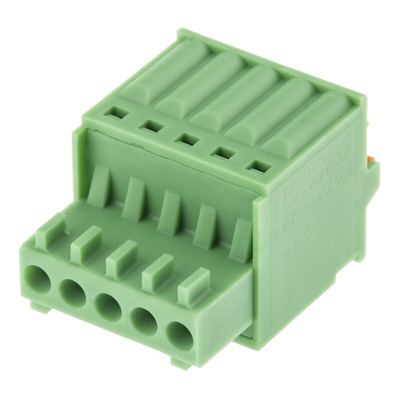

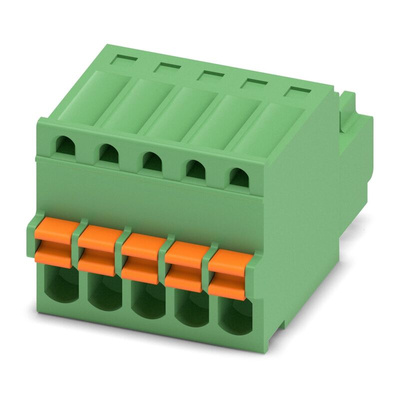

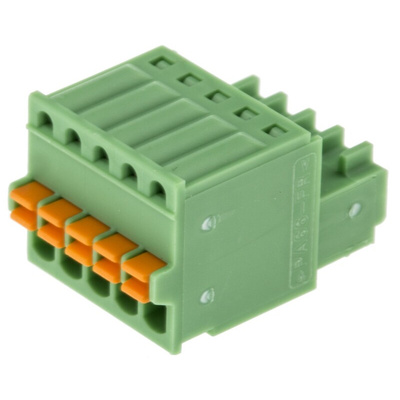

Phoenix Contact FK-MC 0.5/ 5-ST-2.5 Series Pluggable Terminal Block, 4A, 320V - 1881354

This Phoenix Contact Plug terminal block features a straight body orientation in green nylon material, suitable for a 4A current rating with 5 contacts. With a pitch of 2.5mm and spring cage termination, this terminal block offers a reliable and efficient solution for various electrical connections.

Features & Benefits

• Straight body orientation for easy cable management
• Green nylon material ensures durability and longevity
• 4A current rating suitable for a variety of applications
• 5 contacts allow for multiple connections in a single block
• 2.5mm pitch provides precise spacing for components
• Spring cage termination offers a secure connection without the need for tools

Applications

• Ideal for use in printed-circuit board connectors
• Suitable for automation, electronics, electrical, and mechanical industries

Can it handle high voltage applications?

Yes, the Phoenix Contact plug terminal block is rated for up to 320V, making it suitable for various voltage requirements.

Is it easy to install without specialised tools?

Yes, the terminal block features a spring cage termination method, allowing for quick and tool-free installation.

Will it work for projects requiring a compact design?

Yes, with a pitch of 2.5mm and a straight body orientation, this terminal block is perfect for projects with space constraints.

Can the block accommodate different wire sizes?

Yes, the block is designed to accommodate wire sizes ranging from 0.14mm² to 0.5mm², providing flexibility for various applications.

Is the terminal block environmentally friendly?

The terminal block meets China RoHS requirements, ensuring environmentally friendly use over an unlimited period.

Datasheet 1881354

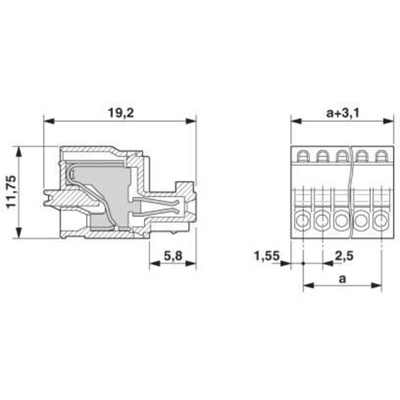

Line Drawing - 1881354
