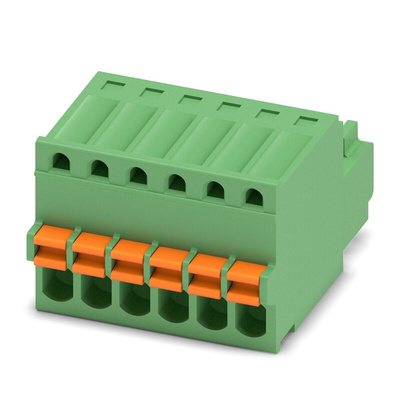

1881367, Phoenix Contact 2.5mm Pitch 6 Way Pluggable Terminal Block, Plug, Cable Mount, Spring Cage Termination

Phoenix Contact Pluggable Terminal Block, 6 Ways, 4A Current Rating - FK-MC 0,5/ 6-ST-2,5 - 1881367

Clip your board-mounted setup together smoothly using this pluggable terminal block from Phoenix Contact. It pairs with a MICRO COMBICON header (357-9571) to provide quick plug-in connectivity. The connector features coding tabs for individual positioning, polarising its partner socket to prevent damage from misaligned mating. Linking many circuits is a breeze thanks to the single-row six-way design. You can count on reliable connections, thanks to tin-plated copper alloy contacts that resist corrosion to keep power flowing freely.
To help you build your board assembly in a flash, this block's spring terminals push effortlessly onto cable ends, so there's no need for special tools. It's a versatile option that handles wire sizes of 0.14 to 0.5mm² (26 to 20AWG), so you have options. Thanks to insulating PA housing, you can trust it to shrug off rogue current and minimise the risk of device damage or electric shocks.

Features & Benefits

• Lifespan of 25 mating operations for tolerance of frequent fitting and removal
• Standard pitch of 2.5mm for compatibility with standard hardware
• UL 94-V0 flammability rating means burning stops inside 10 seconds in case of fire
• Has passed environmental test IEC 60068-2-6:2007-12, indicating it resists damage from movement

Datasheet 1881367

Line Drawing - 1881367
