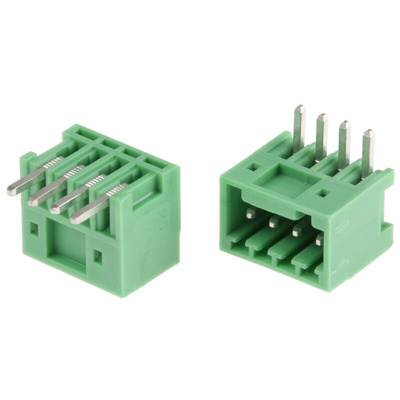

1881464, Phoenix Contact 2.5mm Pitch 4 Way Right Angle Pluggable Terminal Block, Header, Through Hole, Solder Termination

3579559
Номер производителя: 1881464Производитель: Phoenix Contact
Цена за шт. (норма упаковки 5 шт)
534.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact MICRO COMBICON MC, MCV, MCD & MCDV Series 2.5mm Terminal Block Headers

MICRO COMBICON MC (right angle), MCV (vertical) and MCD/MCDV (double level) 2.5mm pitch low profile shrouded through hole mount PCB terminal block headers. These PCB terminal block headers can be used with the MICRO COMBICON MC 0,5 cable mount plug connectors.

Phoenix Contact Right-Angled PCB Header, 4 Way, 1 Row - MC 0,5/ 4-G-2,5 - 1881464

Choose this right-angled header from Phoenix Contact for reliable wire-to-board signal transmission on your PCBs. It has copper-alloy contacts that are highly conductive with a low resistance of 2mΩ, giving you a stable connection. These contacts have a pitch of 2.5mm between them, so they're far enough apart to prevent short-circuits, which improves electrical safety.
The header's green polyamide housing can stand up to mechanical impact and abrasion, so it's suitable for use in harsh environments. It's also heat-resistant and has been tested to withstand up to 125°C of thermal intensity. With a 4A current rating, this component is energy-efficient and maintains a low temperature when functioning, so you can use it in volatile systems. You'll find it's often used in computer and mobile phone manufacturing facilities.

• Compact dimensions of 10.1 (length) x 11.9 (width) x 11.9mm (height) easily fits into small enclosures
• Weighs 0.9g for only light pressure on the PCB
• Wide operating temperature range between -40°C and +100°C for use in demanding environments
• EAC approved to conform to Eurasian technical regulations

Техническая спецификация
pdfDatasheet
pdfInstallation Sheet - 1881464
pdfLine Drawing - 1881464
Кол-во контактов:
4
Количество рядов:
1
Концевая заделка:
Припой
Материал контактов:
Медный сплав
Номинал тока:
4.0A
Номинальное напряжение:
320.0 V
Ориентация корпуса:
Правый угол
Покрытие контактов:
Олово
Серия:
COMBICON MC
Тип монтажа:
Сквозное отверстие
Тип съемного клеммного блока:
Header
Шаг:
2.5мм
