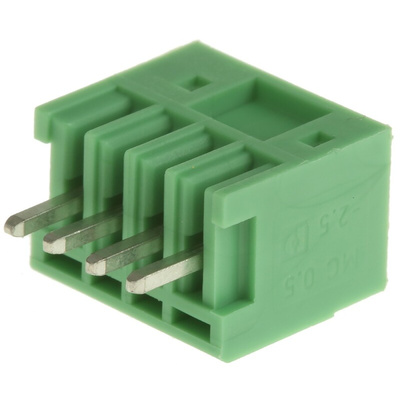

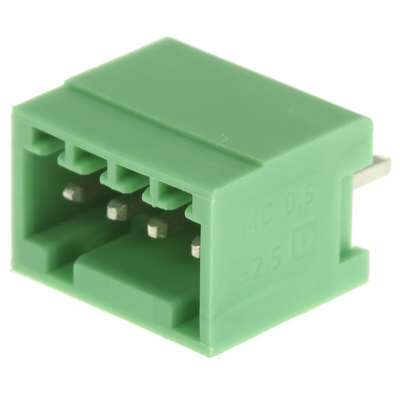

1881574, Phoenix Contact 2.5mm Pitch 4 Way Pluggable Terminal Block, Header, Solder Termination

Phoenix Contact PCB Header, 2mΩ Contact Resistance, 2.5kV Rated Surge Voltage - MCV 0,5/ 4-G-2,5 - 1881574

For safe signal transmission through your circuit boards, go for this PCB header from Phoenix Contact. Its 4-contact design means it's a multi-circuit control solution that reduces the need for excess wiring, making for a neat system. The PA housing does double duty, providing impact resistance as well as insulation to prevent any shocks during installation or operation. For enhanced safety, its contacts have a 2.5mm pitch between them to reduce the risk of short circuits.
This header withstands up to 2.5kV of surge voltage without damage, so it's a reliable choice for sensitive settings. Wave soldering it onto a PCB creates a permanent connection that stays strong even in vibrating systems. Thanks to compact dimensions of 8.1 (L) x 12.2 (W) x 13.6mm (H), you'll have no issues fitting this piece of kit in confined spaces. You'll find it used in consumer electronics.

Features & Benefits

• RoHS certification shows that it only contains trace amounts of hazardous substances
• Wide operating temperature range between -40°C to +100°C for use in demanding conditions
• UL94V0 rating means it stops burning in 10 seconds or less in the event of a fire, making it a safe choice for sensitive areas

Datasheet

Line Drawing - 1881574
