1881590, Phoenix Contact 2.5mm Pitch 6 Way Pluggable Terminal Block, Header, Through Hole, Solder Termination

3579622
Номер производителя: 1881590Производитель: Phoenix Contact
Цена за шт. (норма упаковки 5 шт)
783.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact MICRO COMBICON MC, MCV, MCD & MCDV Series 2.5mm Terminal Block Headers

MICRO COMBICON MC (right angle), MCV (vertical) and MCD/MCDV (double level) 2.5mm pitch low profile shrouded through hole mount PCB terminal block headers. These PCB terminal block headers can be used with the MICRO COMBICON MC 0,5 cable mount plug connectors.

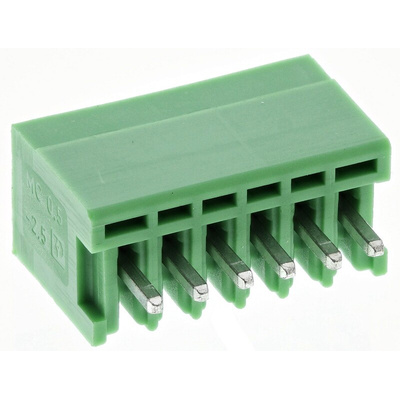

Phoenix Contact Straight PCB Header, 2.5mm Pitch, 1 Row - MCV 0.5/ 6-G-2.5 - 1881590

Make multiple printed circuit board (PCB) connections on a single block with this straight header from Phoenix Contact. You can use it for both board-to-board and wire-to-board connections, making it a versatile choice. It has 6 pins made of tin for superior conductivity and easy soldering. These pins are spaced 2.5mm apart to prevent accidental contact that could lead to electrical short circuits.
Thanks to a polyamide housing material that's durable and heat resistant, you can use this unit in harsh environmental conditions. The shell also provides effective insulation – so you don't need to worry about electrical shocks – and it's shrouded to prevent electromagnetic interference (EMI) for noiseless signal transmission.
With a 4A current rating and voltage rating of 320V, this component is suitable for use in medium-to-high power applications. You'll often find PCB headers like this one used in gaming and home-security systems.

Features & Benefits

• Straight body orientation for easy access to pins when soldering
• UL94V-0 (Underwriters' Laboratory) rating for fire safety
• Rated surge-voltage of 2.5kV to withstand voltage spikes for electrical safety

Техническая спецификация
pdfConnector,2 part PCB,vertical header,2 way,Product Data
pdfDatasheet - 1881590
pdfLine Drawing - 1881590
Кол-во контактов:
6
Количество рядов:
1
Концевая заделка:
Припой
Материал контактов:
Медный сплав
Номинал тока:
4A
Номинальное напряжение:
320.0 V
Ориентация корпуса:
Прямой
Покрытие контактов:
Tin Plated
Серия:
MCV 0.5/ 6-G-2.5
Тип монтажа:
Сквозное отверстие
Тип съемного клеммного блока:
Header
Шаг:
2.5мм
